Ricoh B234 - Bcu-Iob Unit

BOARDS
3-164
3.14.4 BCU-IOB UNIT
1. Open:
• Controller box ( x3) (3.3.7)
• PSU box ( x2) (3.3.8)
2. Rear cover. (3.3.6)
3. PSU box positioning plate [A] ( x2).
4. BCU-IOB unit [B] ( x5,  x31).

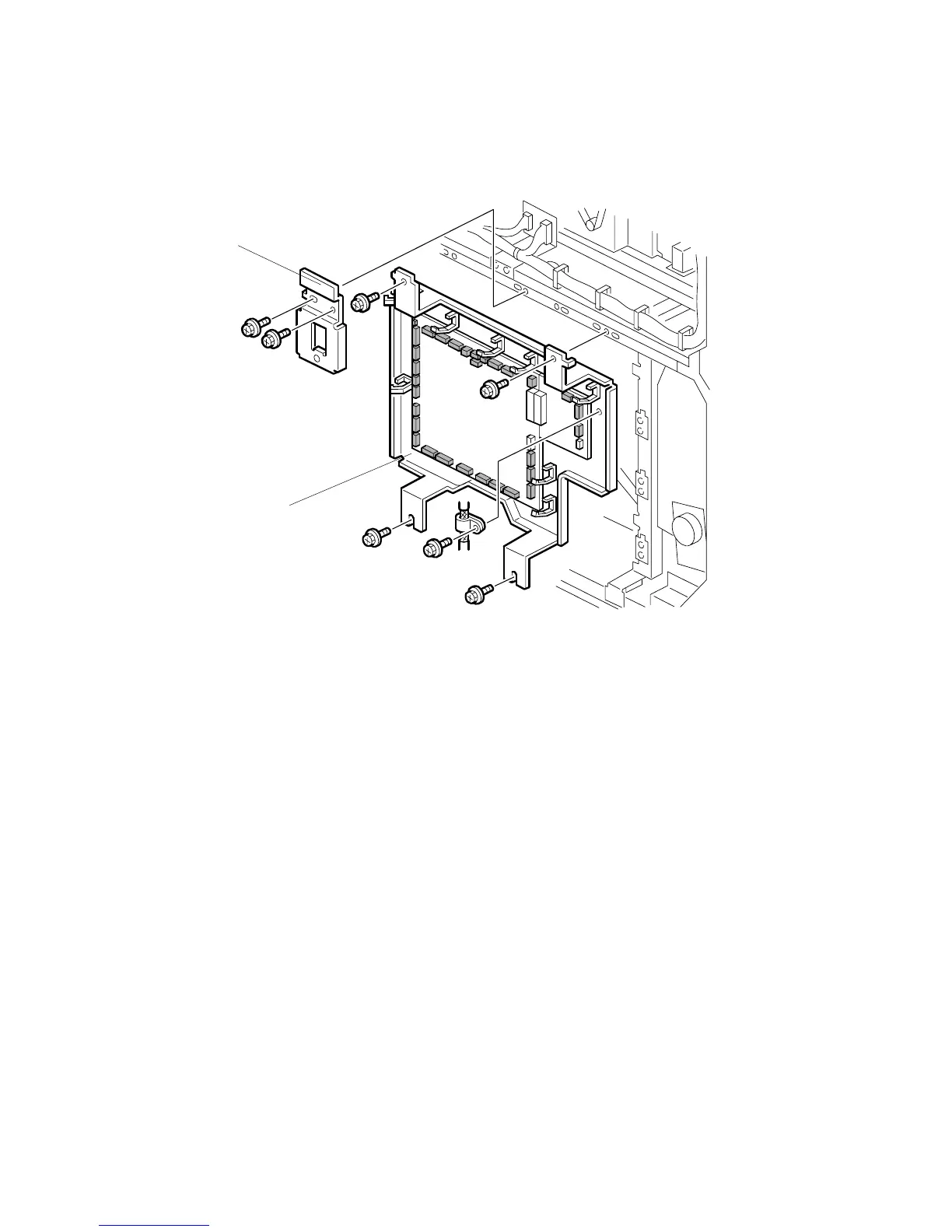

B234R955.WMF
[A]
[B]
