Ricoh B234 - Accessories; Copy Data Security Unit (B829); Installation

Installation of MFP controller Options
SM 1-153 B234/B235/B236/D101/D102/D103
Installation
1.15.17 COPY DATA SECURITY UNIT (B829)
Accessories
Description Q’ty
1. Copy Data Security Unit B829 (Board).......................................1
2. Screws ....................................................................................... 2
Installation
1. Switch the machine off.
2. Remove the controller box cover
( x8).
3. Remove the bracket [B] ( x2).

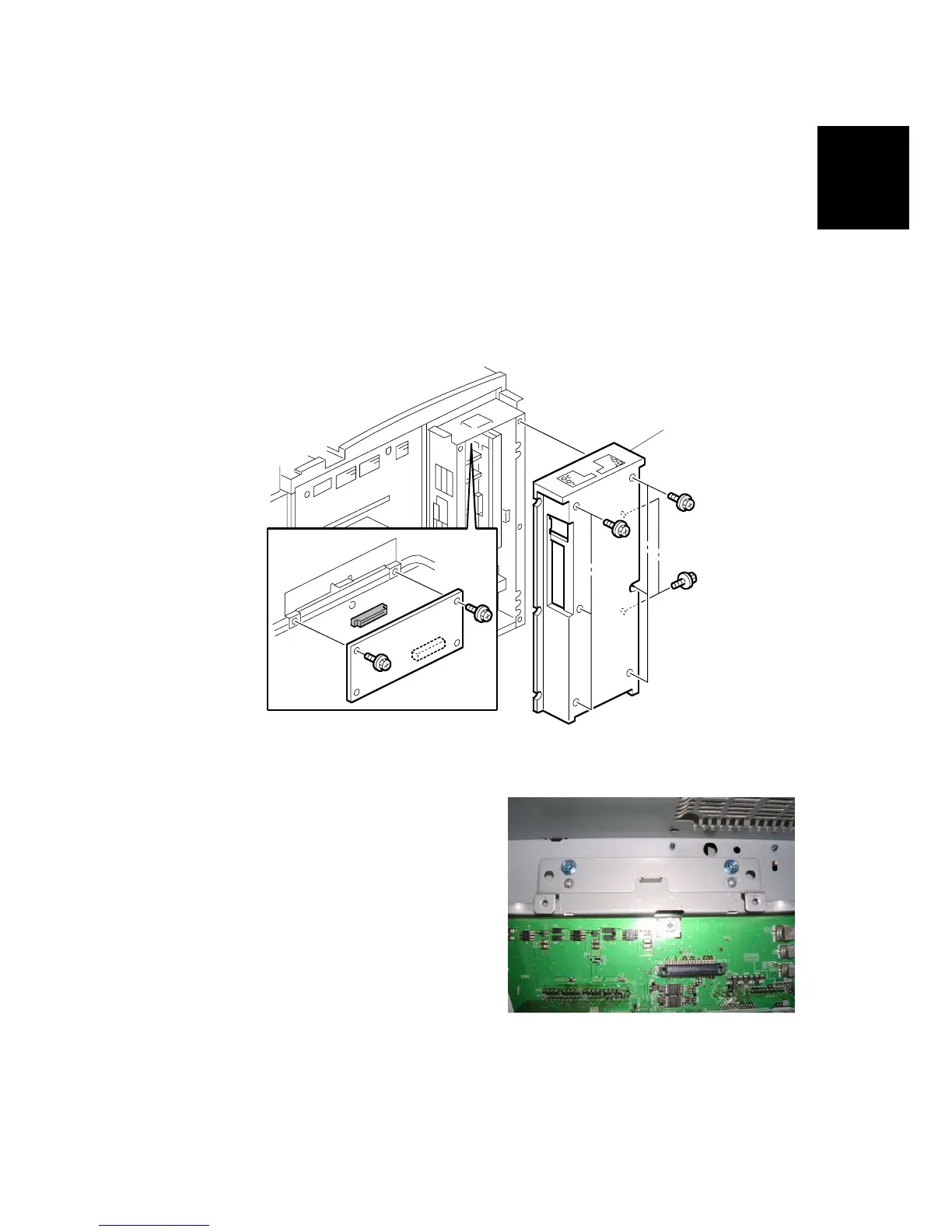

B829I100.WMF
[A]
[B]
