INSTALLATION OF MFP CONTROLLER OPTIONS
B234/B235/B236/D101/D102/D103 1-154 SM

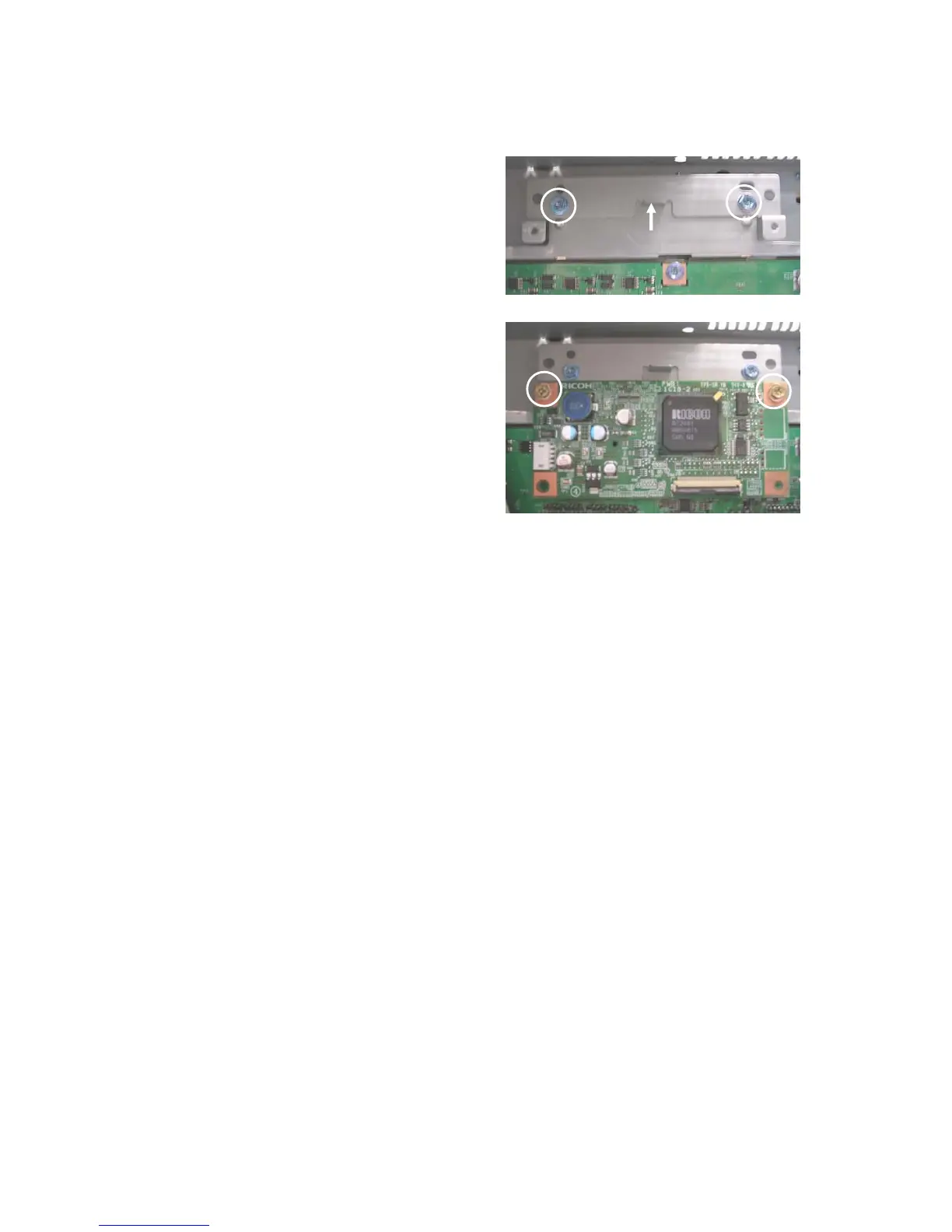

4. Move the bracket up and reattach it
with the same screws ( x2).
5. Insert the edge connector of the ICIB-
2 into the slot.
6. Fasten the ICIB-2 [C] to the IPU ( x2).
7. Reattach the rear cover.
Do the Setup Procedure
1. Switch the machine on.
2. Login in as the System Administrator.
3. Push [User Tools].
4. Touch "System Settings".
5. Touch "Administrator Tools".
6. Touch next 2 or 3 times until you see "Data Security for Copying".
7. Touch "ON".
8. Touch "OK" to enable the setting.
Important
• Before removing the ICIB-2 board, repeat the setup procedure above and set
"Data Security for Copying" to "OFF".
• The machine will issue an SC error if the machine is powered on with the ICIB-2
removed and the "Data Security for Copying" feature set to "ON".
[C]
