3.10.18 IMAGE POSITION SENSORS

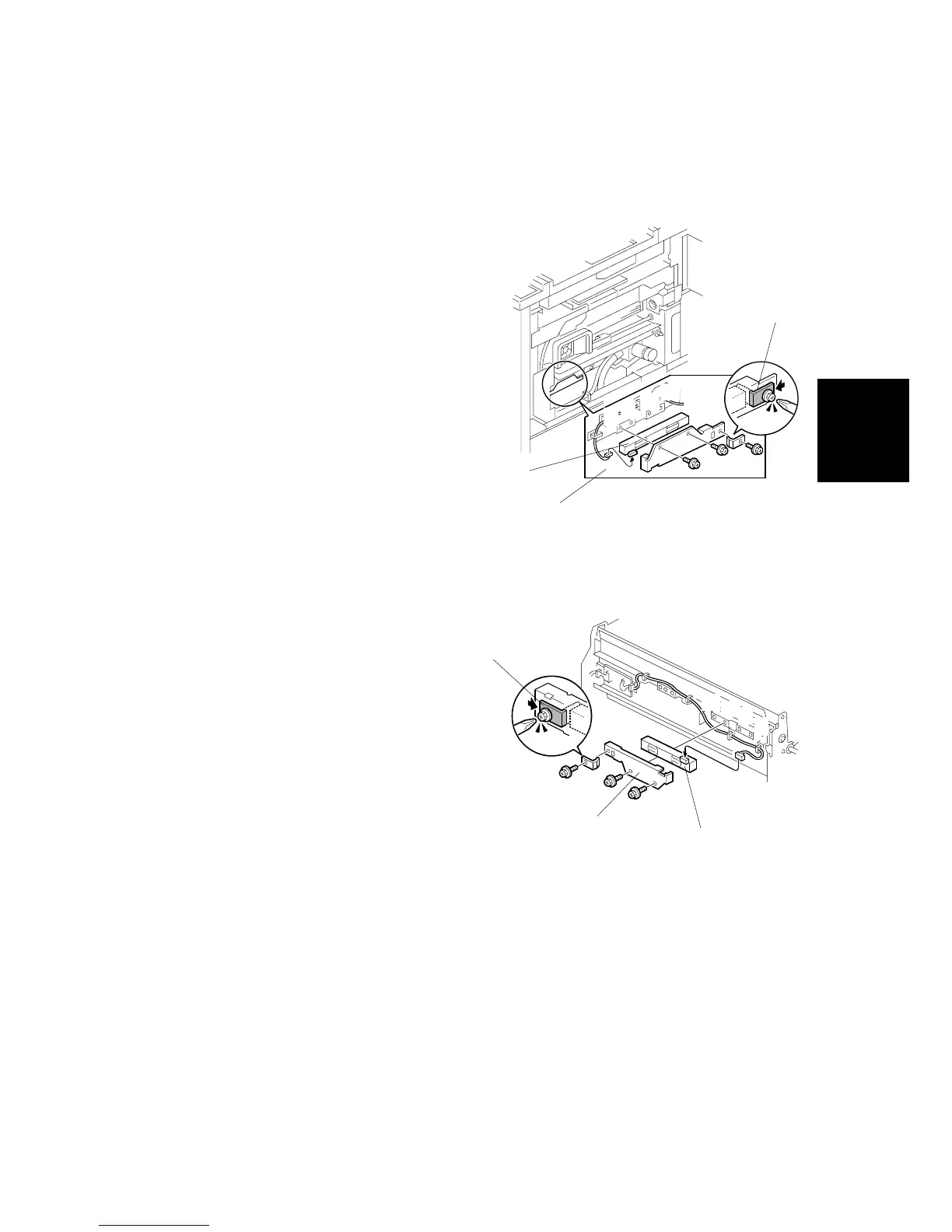

Image position sensor unit (Tray)
・ Right upper cover ( x 4). (3.3.4)
[A]: Image position sensor unit (Tray) (
x2,  x1)
[B]: Stopper ( x1)
[C]: Image position sensor
NOTE:
• The left screws (, ) are for paper
widths of 140 – 330 mm.
• The right screws (, ) are for
paper widths of less than 140 mm.
Image position sensor unit (Duplex)
・ Registration unit (3.10.16)
[D]: Image position sensor unit (duplex) (
x2,  x1)
[E]: Stopper ( x1)
[F]: Image position sensor
NOTE:
• The left screws (, ) are for paper
widths of 140 – 330 mm.
• The right screws (, ) are for paper
widths of less than 140 mm.
After replacement, the CIS must be calibrated. (See next page.)
