Ricoh B234 - Operation Panel

COPIER (B234/B235/B236/D101/D102/D103)
SM 1-25 B234/B235/B236/D101/D102/D103
Installation
Operation Panel

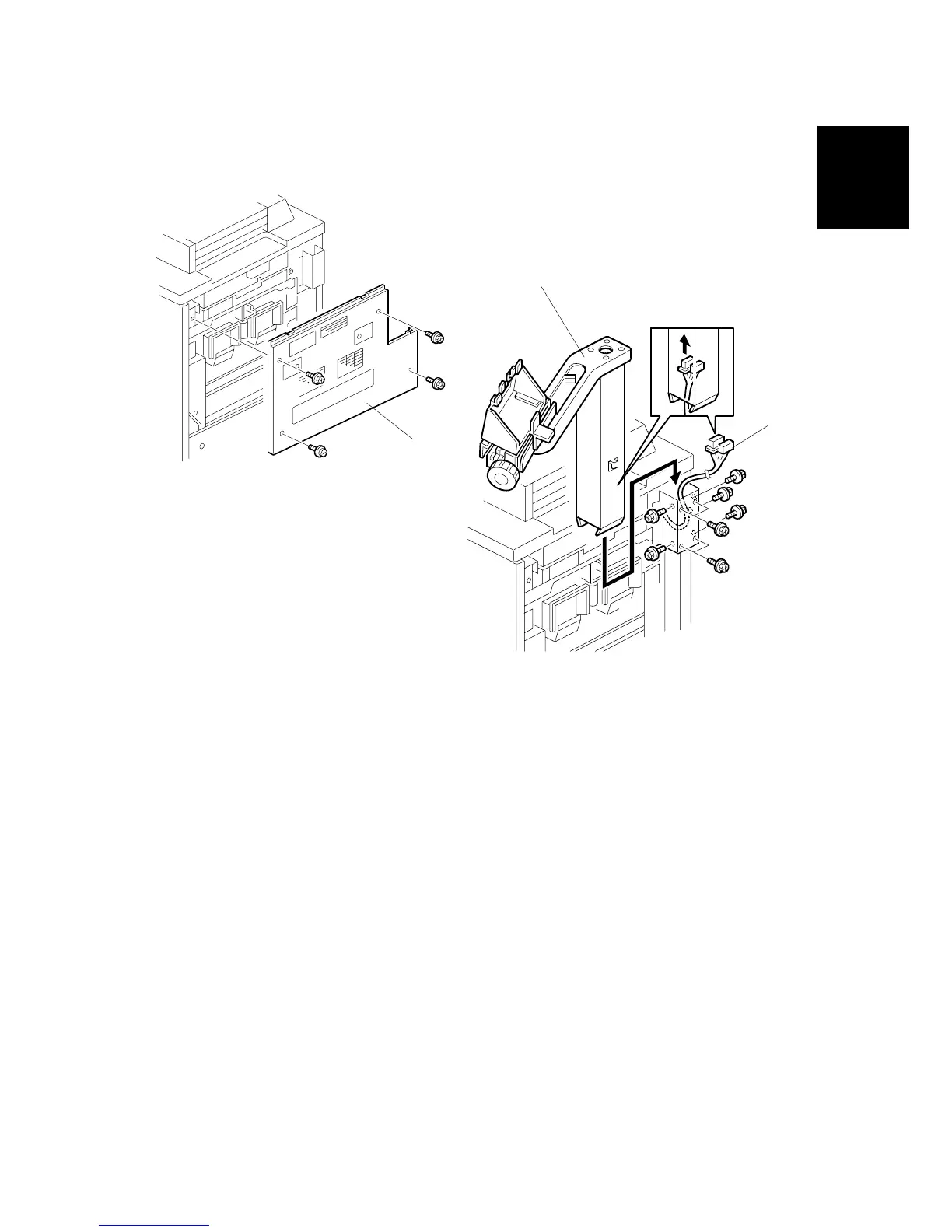

1. Remove the right upper cover [A] ( x 4).
2. Pass the harness [B] through the arm [C].
3. Install the arm [C] ( x 9).
B234I012.WMF
B234I013.WMFMF
[A]
[C]
[B]
