COPIER (B234/B235/B236/D101/D102/D103)
B234/B235/B236/D101/D102/D103 1-26 SM

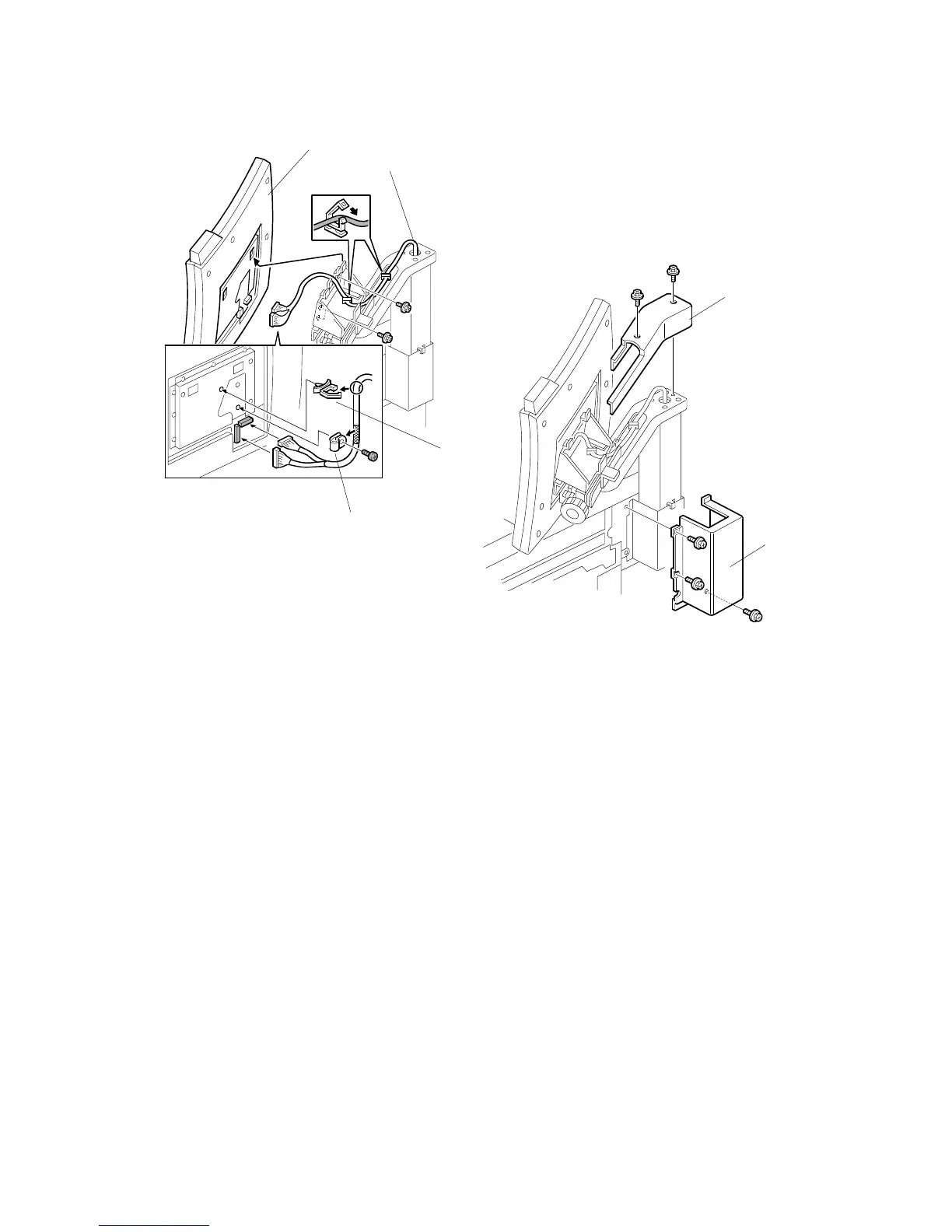

4. Pull the harness [A] through the top of the arm and connect it to the operation
panel [B] ( x2).
5. Secure the harness clamp [C] on the operation panel ( x 1, M4 x 6 brass pan
head).
6. Install the operation panel on the arm ( x 4).
7. Set the harness clamp [D].
8. Pass the harness through the clamps (= x3).
9. Install the right arm cover [E] ( x 3).
10. Install the arm upper cover [F] ( x 2).
B234I014.WMF
B234I015.WMF
[C]
[A]
[B]
[D]
[E]
[F]
