Ricoh B234 - Paper Feed; Paper Trays; Tandem Tray

PAPER FEED
SM 3-89 B234/B235/B236/D101/D102/D103
Replacement
Adjustment
3.10 PAPER FEED
3.10.1 PAPER TRAYS
Tandem Tray

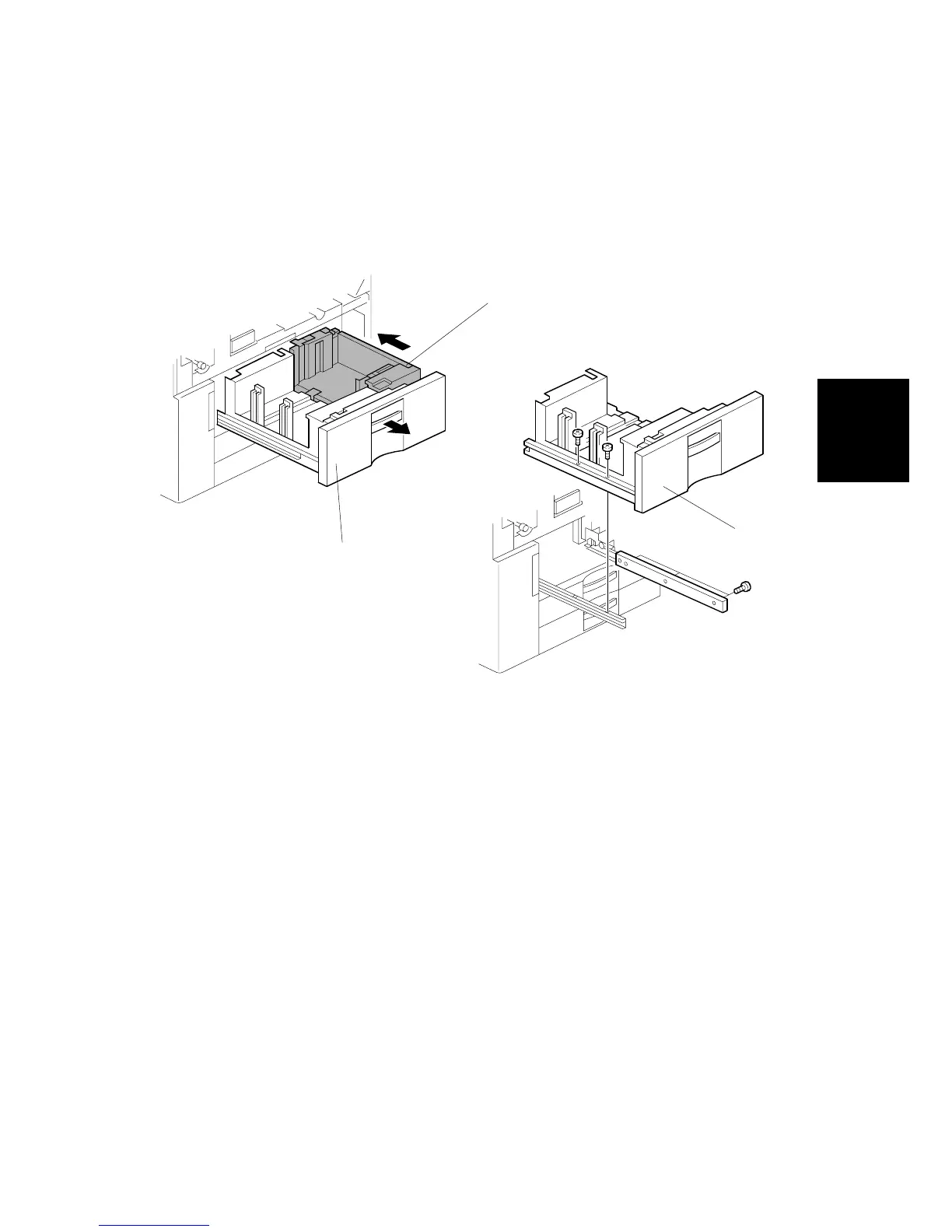

1. Open the front doors.
2. Open the tandem feed tray [A] so the right tandem tray [B] fully separates from
the left tray.
3. Push in the right tandem tray.
4. Left tandem tray [C] ( x 5).
B234R707.WMF
B234R708.WMF
[A]
[B]
[C]
