IMAGE TRANSFER AND PAPER SEPARATION
B234/B235/B236/D101/D102/D103 6-138 SM
6.15 IMAGE TRANSFER AND PAPER SEPARATION
6.15.1 OVERVIEW

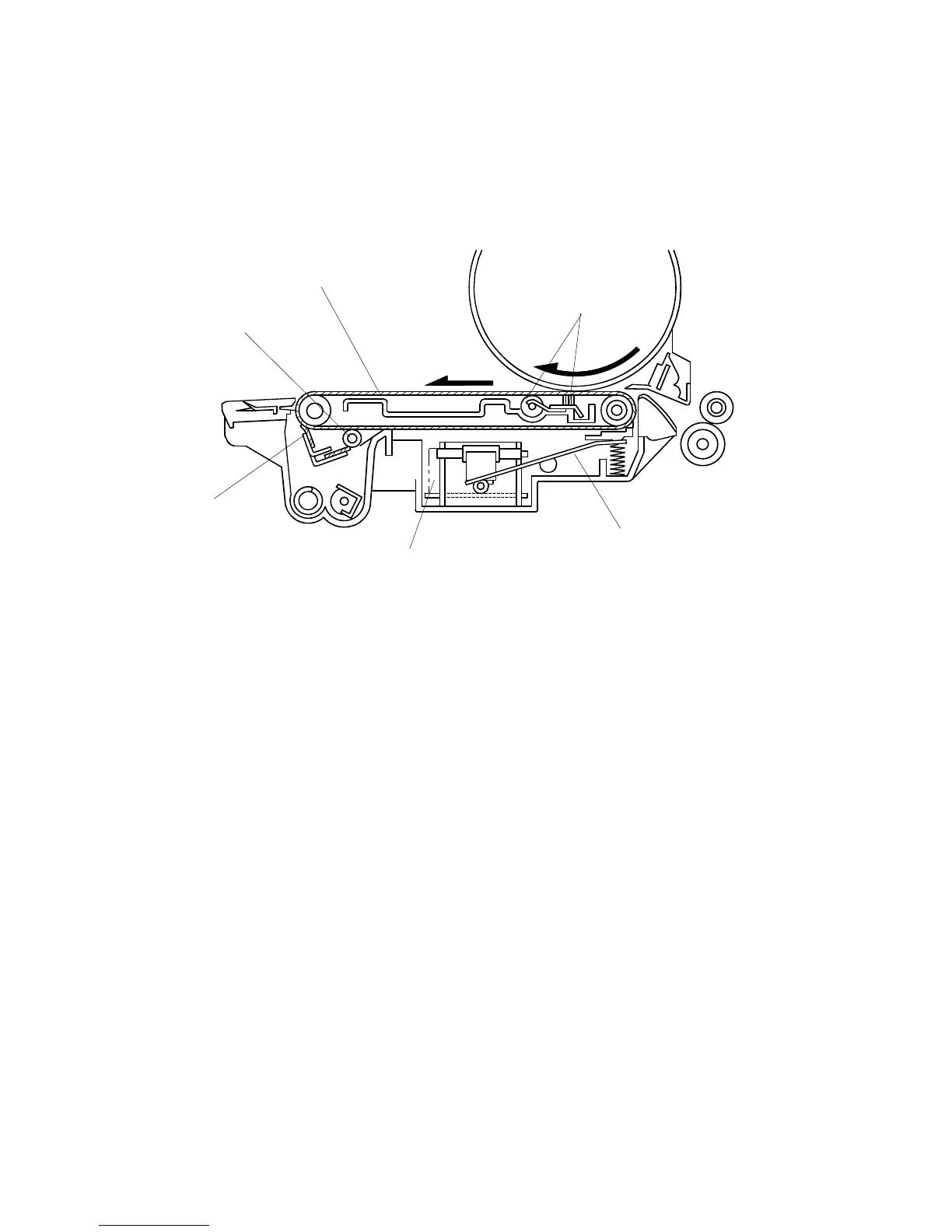

The transfer belt unit consists of the following parts:
[A]: Transfer belt
A belt (length: 321 mm) with high electrical resistance which holds a high
positive electrical potential to attract toner from the drum to the paper.
Also, the electrical potential attracts the paper itself and helps the paper to
separate from the drum.
[B]: Transfer bias roller and transfer belt bias brush
Applies transfer voltage to the transfer belt.
[C]: Transfer belt lift lever (driven by a magnetic latching solenoid)
Lifts the transfer belt into contact with the drum.
[D]: Transfer power pack
Generates a constant transfer current.
[E]: Cleaning bias roller and cleaning roller cleaning blade
Removes toner remaining on the transfer belt to prevent the rear side of the
paper from getting dirty.
[F]: Transfer belt cleaning blade
Removes toner from the transfer belt. Any toner that is not removed by this
blade is removed by the cleaning roller [E].
B234D401.WMF
[A]
[B]
[C]
[D]
[E]
[F]
