COPY IMAGE ADJUSTMENT: PRINTING/SCANNING
SM 3-191 B234/B235/B236/D101/D102/D103
Replacement
Adjustment
3.18.4 ADF IMAGE ADJUSTMENT
Registration

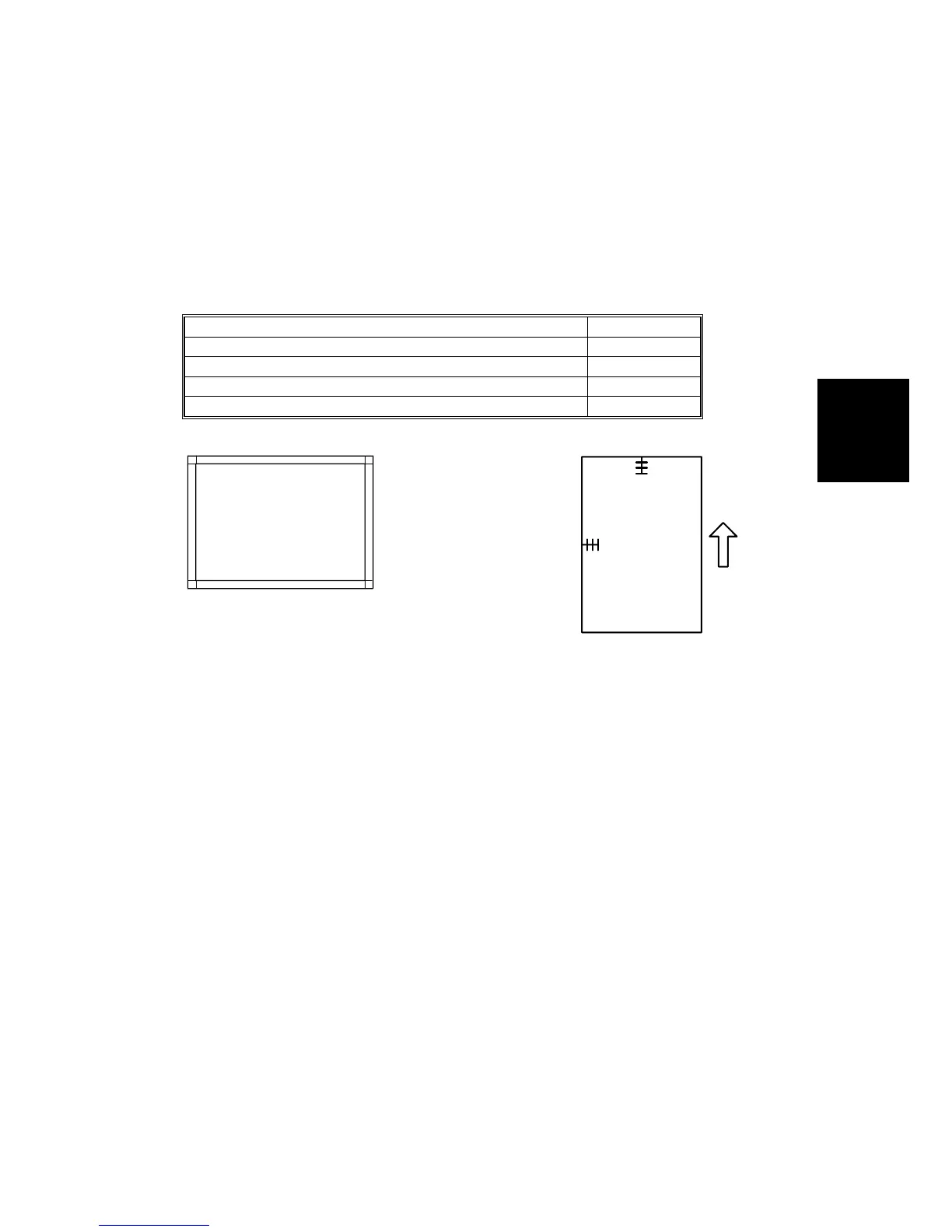

NOTE: Make a temporary test chart as shown below left, using A3/DLT paper.
1. Place the temporary test chart on the ADF and make a copy from one of the
feed stations.
2. Check the registration, and adjust using the following SP modes if necessary.
SP mode
Side-to-side Registration SP6006 001
Leading Edge Registration (Thin original mode) SP6006 003
Leading Edge Registration (Single-sided/Duplex: front) SP6006 005
Leading Edge Registration (Duplex: rear) SP6006 006
B
A
B234R882.WMFMF
B234R881.WMF
A: Leading Edge Registration
B: Side-to-side Registration
