Ricoh B234 - Feed Motor, Grip Motor

PAPER FEED
SM 3-107 B234/B235/B236/D101/D102/D103
Replacement
Adjustment
Feed Motor, Grip Motor

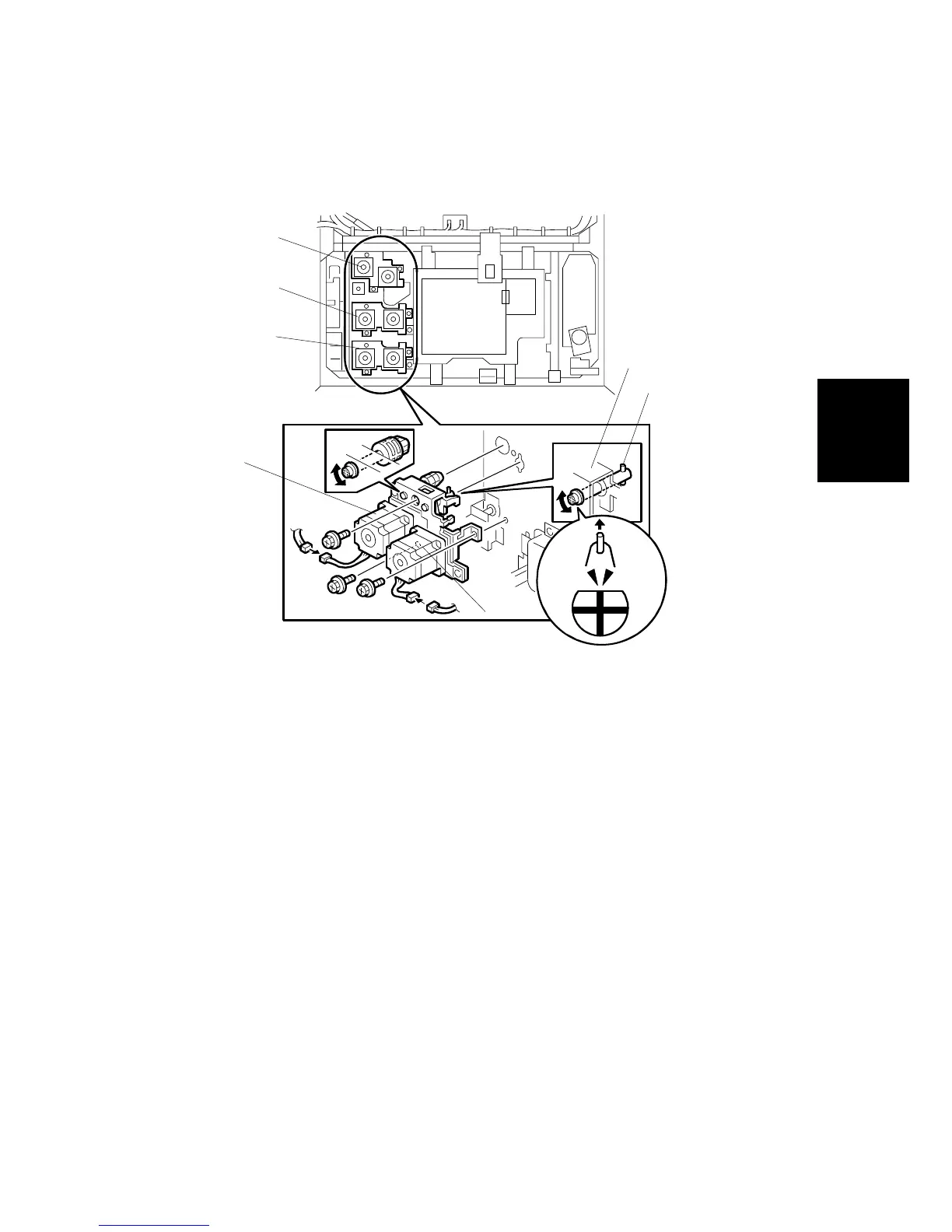

1. Remove the paper feed unit:
[A] 1st tray ( x3,  x2)
[B] 2nd tray ( x3,  x2)
[C] 3rd tray ( x3,  x2)
NOTE: Rotate the drive shaft [D] until the drive pin [E] is pointing up, the
remove the motor unit.
2. Feed motor [F] ( x3, Spring x1, Timing belt x1)
3. Grip motor [G] ( x3, Spring x1, Timing belt x1)
B234R952.WMF
[A]
[B]
[C]
[D]
[F]
[G]
[E]
