Ricoh B234 - Filters, Original Exit Tray

COPIER (B234/B235/B236/D101/D102/D103)
SM 1-27 B234/B235/B236/D101/D102/D103
Installation
Filters, Original Exit Tray

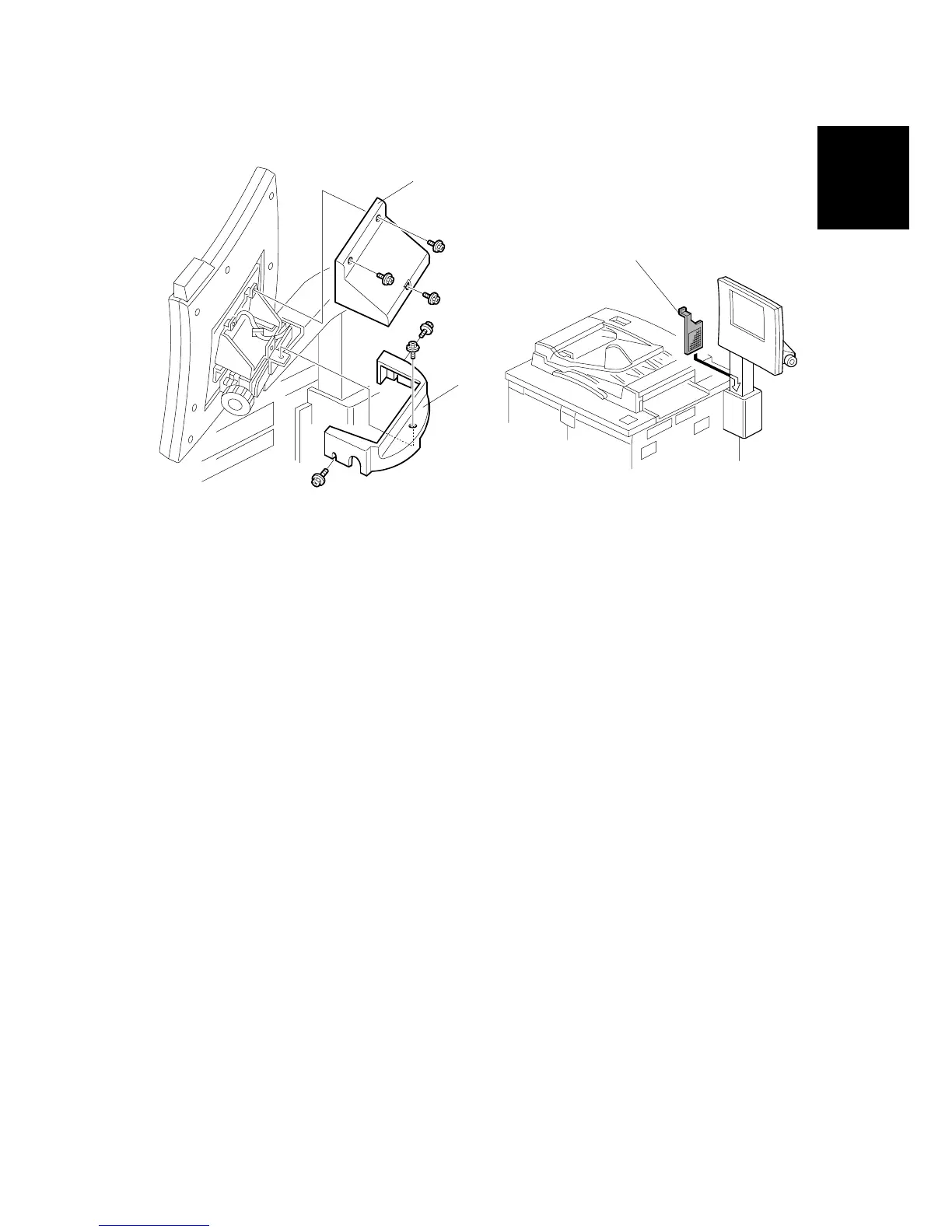

1. Install the upper cover [A] ( x 3)
2. Install the lower cover [B] ( x 3).
3. Set the drum dust filter [C].
4. Loosen the bottom knob, adjust the view angle of the operation panel, then
tighten the knob.
5. Loosen the side knob, adjust the tilt of the operation panel, then tighten the
knob.
B234I016.WMF
B234I017.WMF
[A]
[B]
[C]
