COPIER (B234/B235/B236/D101/D102/D103)
B234/B235/B236/D101/D1
02/D103 1-18
SM

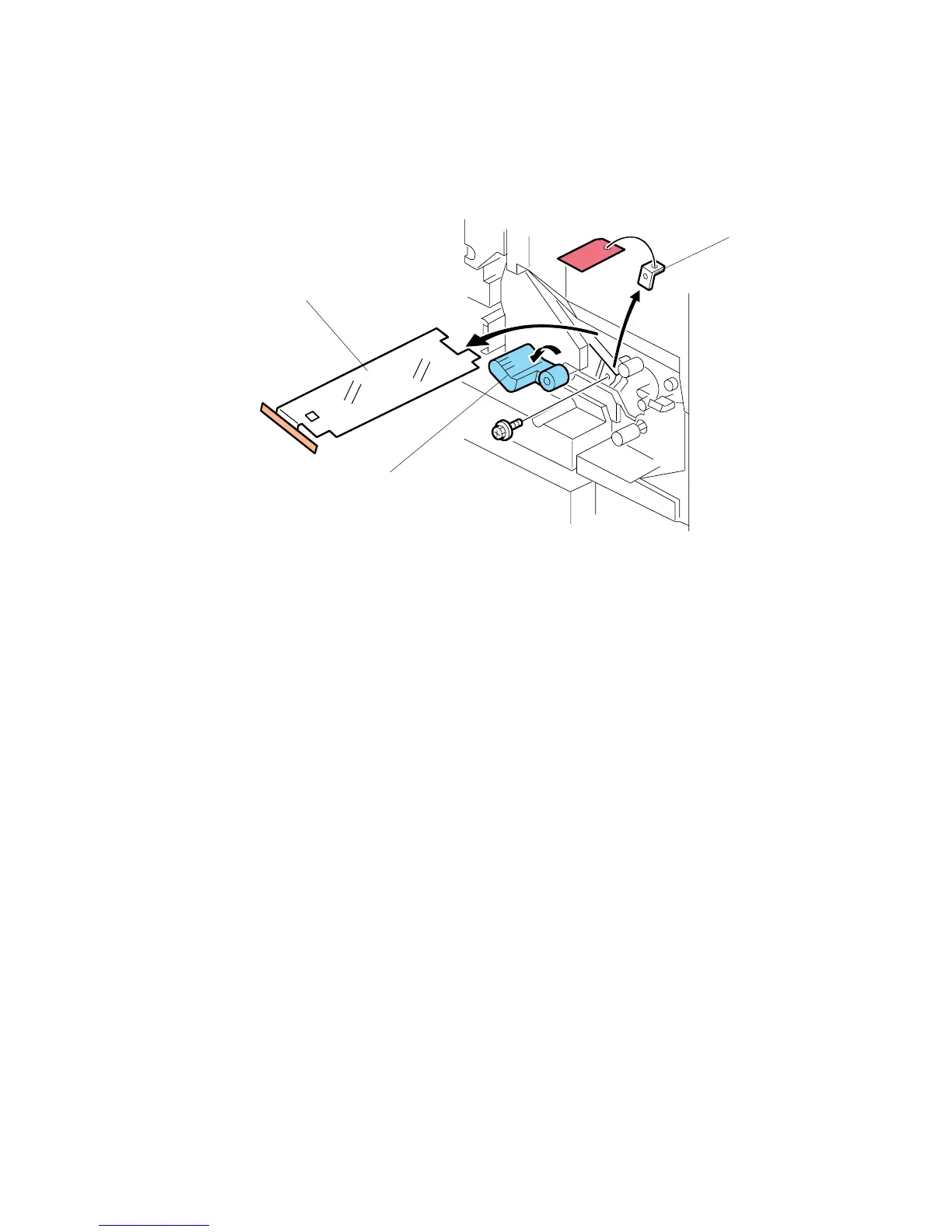

Internal Tape and Retainers: Transfer Unit
1.
Lower the lever
C1
[A].
2.
Remove all tape, tags, and reta
iners [B] from the transfer unit (
x1).
B234I002B.
W
MF
[A]
[B]
[B]
55
57
