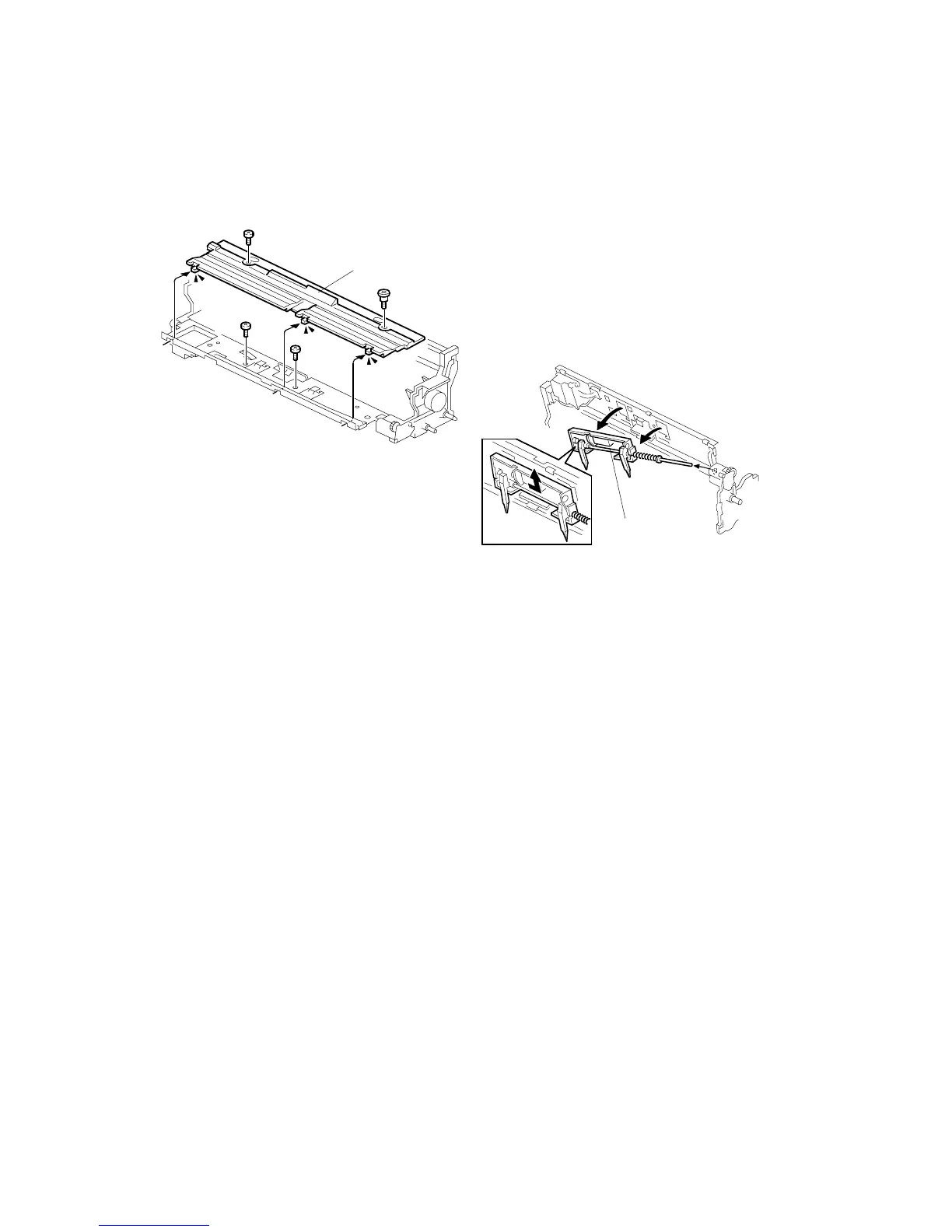

3.7.6 PICK-OFF PAWLS
Remove
• Drum (3.7.1)
1. Cover [A] ( x2)
2. Pick-off pawl unit screws ,  ( x2)
3. Pick-off pawl unit [B].
B234R202.WMF
B234R203.WMFMF


[A]
[B]
