Ricoh B234 - Cleaning Roller: Pressure Roller

FUSING UNIT
3-138
3.11.8 CLEANING ROLLER: PRESSURE ROLLER

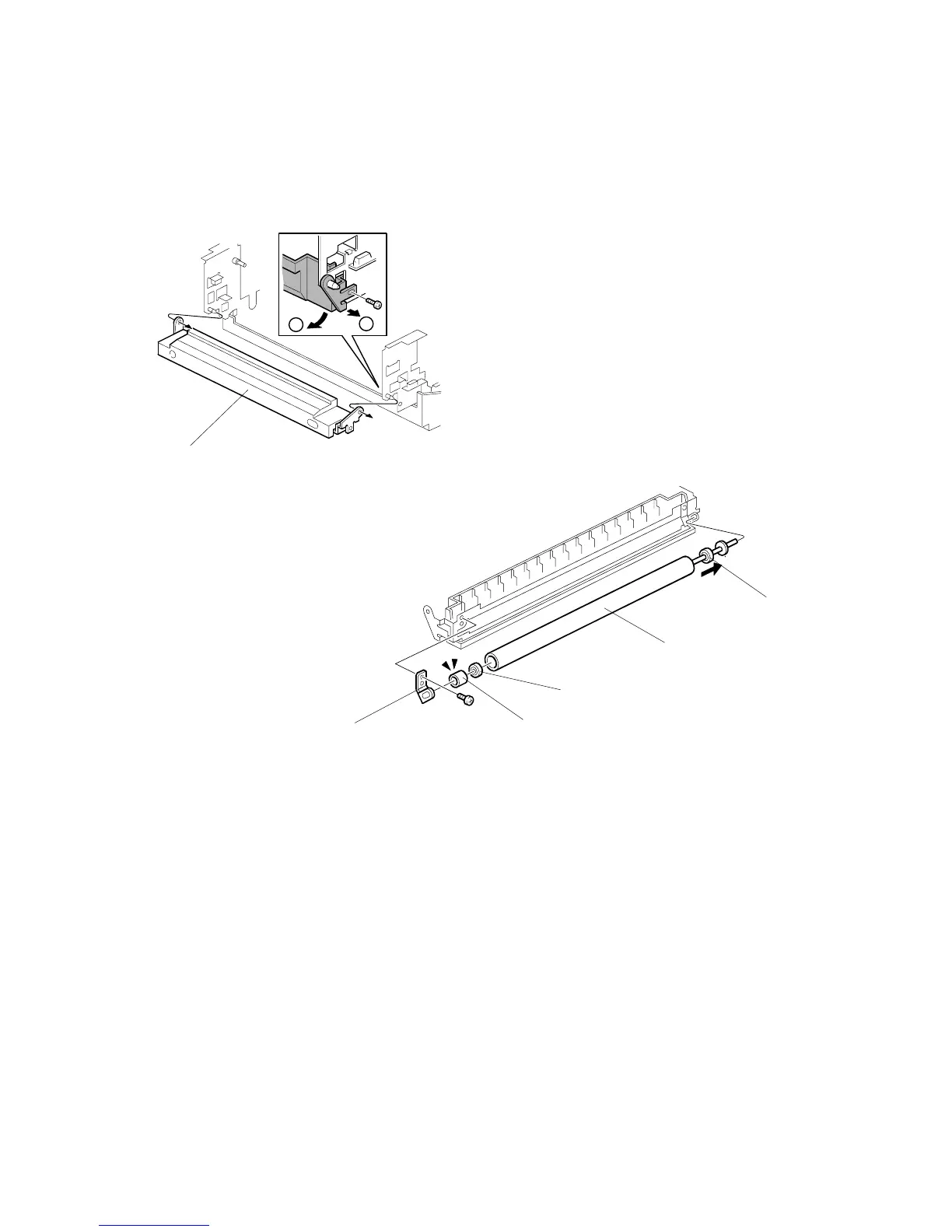

1. Pressure roller cleaning unit [A] ( x1). (3.11.4)
2. Remove:
[B] Plate ( x1)
[C] Bushing x1
[D] Bearings (x2)
[E] Cleaning roller
3. Clean the cleaning roller with a clean cloth.
1
2
B234R508A.WMF
B234R508D.WMF
[A]
[B]
[C]
[E]
[D]
[D]
