PAPER FEED
B234/B235/B236/D101/D102/D103 6-130 SM
6.14.10 LCT GUIDE PLATE

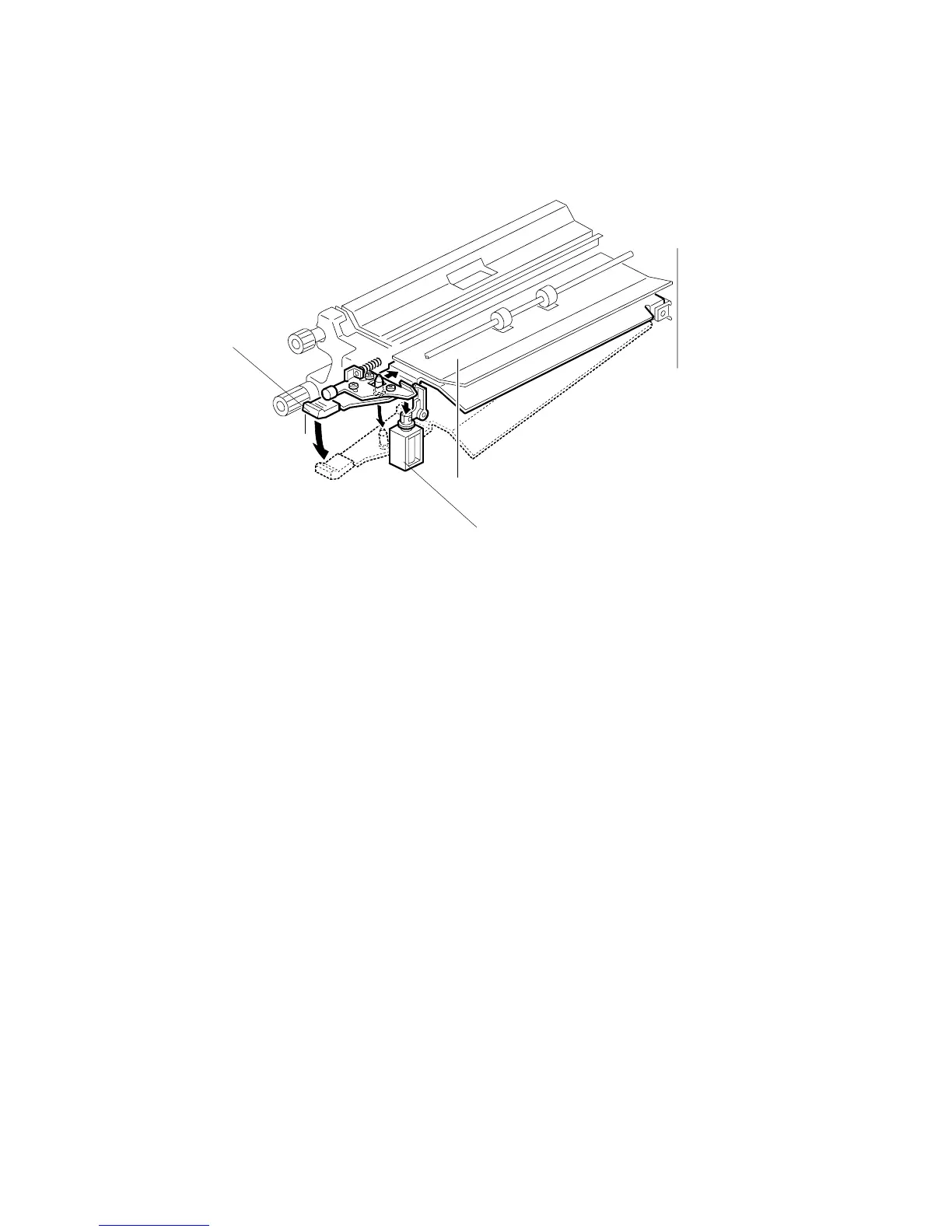

When the machine detects a jam at the LCT exit, paper feed stops, and the LCT
guide plate solenoid [A] releases the guide plate (labeled ‘B5’) [B] so that the user
can easily remove the jammed paper. After removing the jam, the user must return
the B5 lever to its normal position.
B234D975.WMF
[A]
[B]
