Ricoh B234 - Pick-Up Roller

DOCUMENT FEEDER
3-20

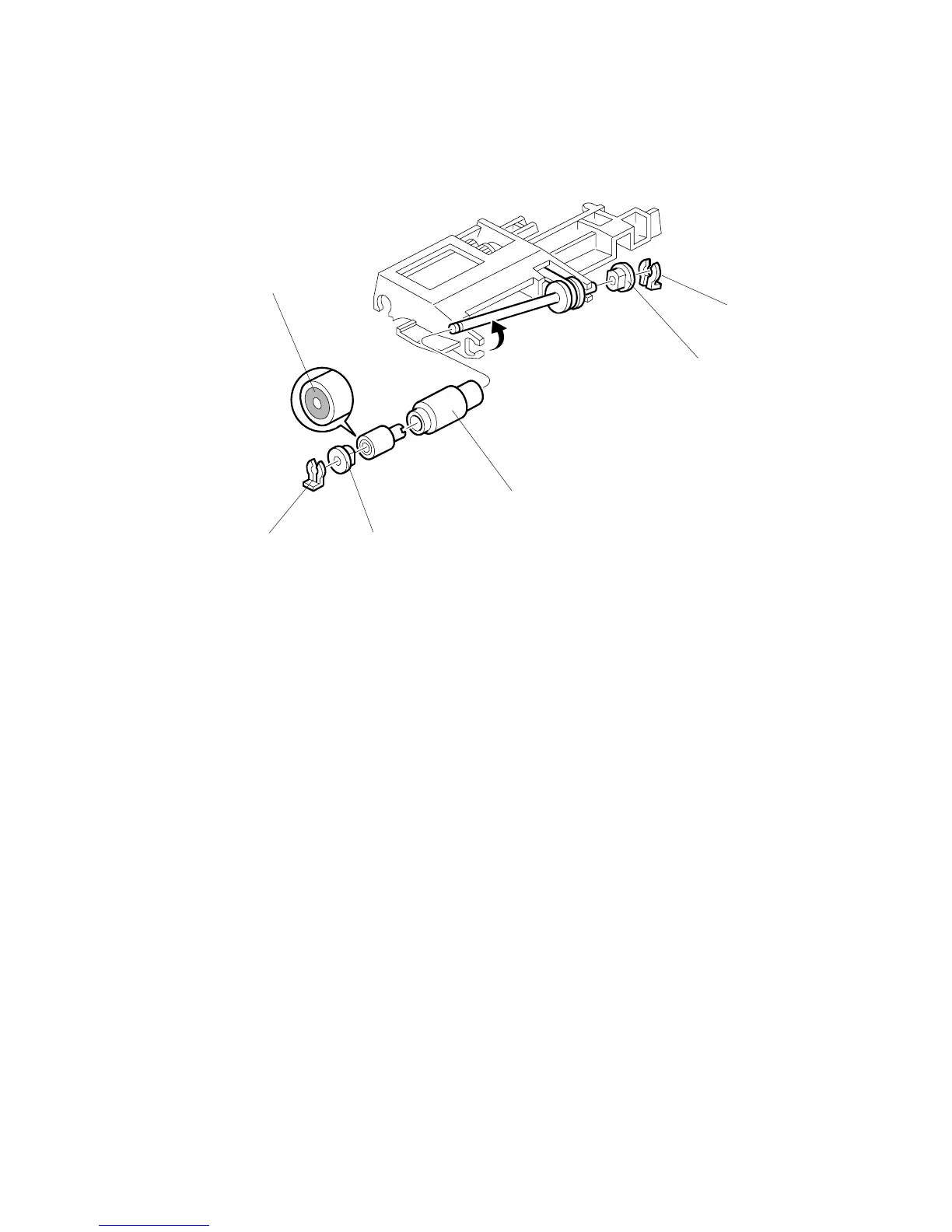

3.4.5 PICK-UP ROLLER
1. Open the left cover.
2. Feed unit (3.4.3)
3. Snap rings [A] ( x 2).
4. Two bushings [B].
5. Pick-up roller [C].
NOTE: When reinstalling the pick-up roller, make sure that the one-way clutch
[D] is not on the gear side.
B234R860.WMF
[A]
[B]
[C]
[A]
[B]
[D]
