FUSING UNIT
3-130

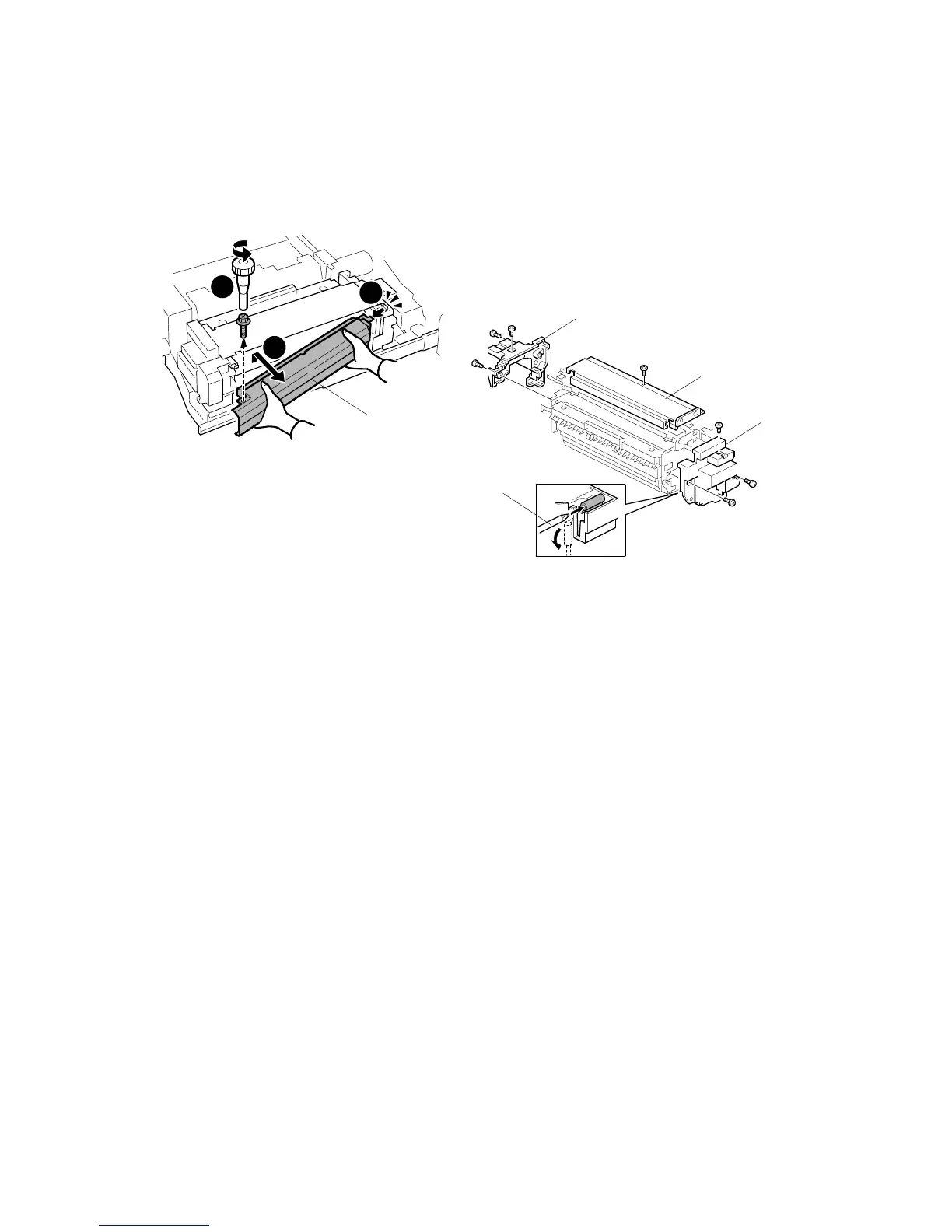

3.11.5 HOT ROLLER UNIT
1. Remove the fusing cleaning unit [A] ( x1). (3.11.3)
2. Top cover [B] ( x1).
Important: The top cover of the B234/B235/D101/D102 is Black, the cover of
the B236/D103 is Yellow.
3. Front cover [C] ( x3).
4. Rear upper cover [D] ( x3).
5. Insert a screwdriver [E] and turn 90 down degrees in the direction of the arrow
to release the nip between the hot roller and the pressure roller.
1
2
3
B234R895.WMF
B234R501A.WMF
[A]
[B]
[C]
[D]
[E]
To Next Page
