FUSING UNIT
SM 3-131 B234/B235/B236/D101/D102/D103
Replacement
Adjustment

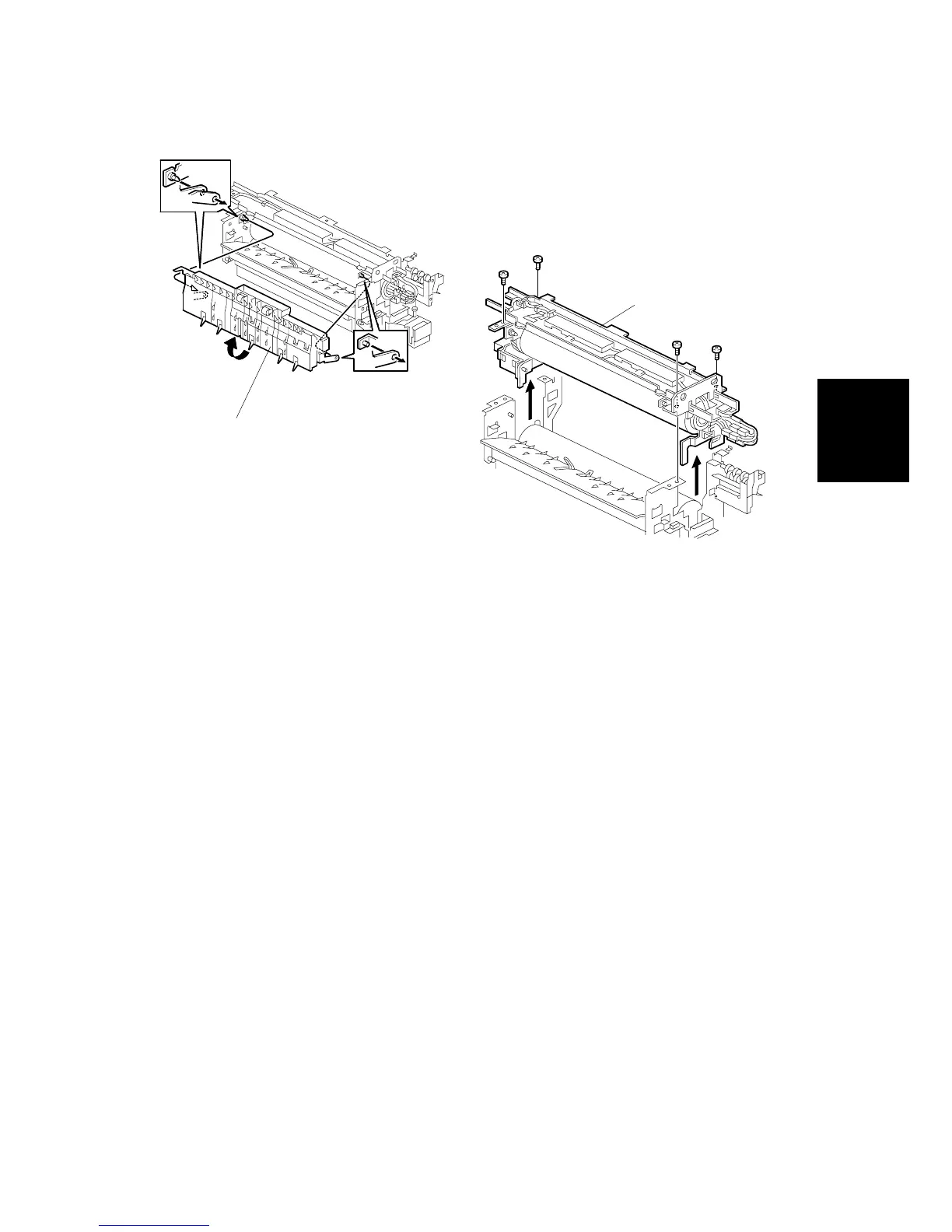

6. Turn the hot roller stripper unit [A] 160 degrees in the direction of the arrow,
then slide it to the front and remove it.
7. Hot roller unit [B] ( x4).
B234R502.WMF
B234R504.WMF
[A]
[B]
