REPLACEMENT AND ADJUSTMENT
SM 5 B660
Z-Folding Unit
B660
1.5 UPPER STOPPER MOTOR/HP SENSOR, FEED
SENSOR
Front cover (1.2)
[A]: Upper stopper motor unit ( x 3, = x 2, x 2)
[B]: Upper stopper motor HP sensor
[C]: Upper stopper motor ( x 2)
[D]: Feed sensor unit ( x 1, x 1)
[E]: Feed sensor

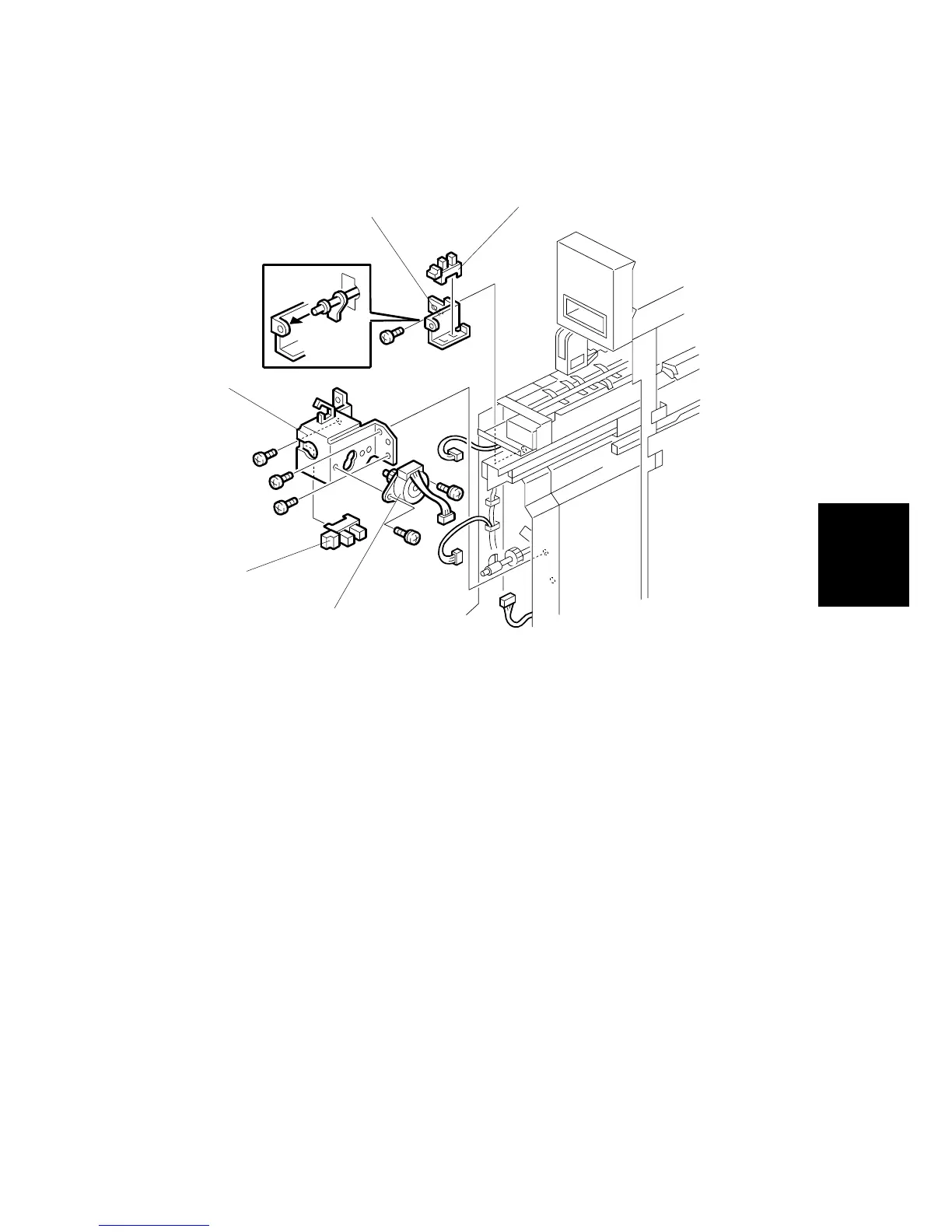

B660R104.WMF
[A]
[B]
[C]
[D]
[E]
