Ricoh B234 - Mb (Mother Board)

Controller Boards, HDD
SM 3-173 B234/B235/B236/D101/D102/D103
Replacement
Adjustment
3.15.6 MB (MOTHER BOARD)
1. Remove:
• Controller box cover. (3.15.1)
• SD card board. (3.15.5)

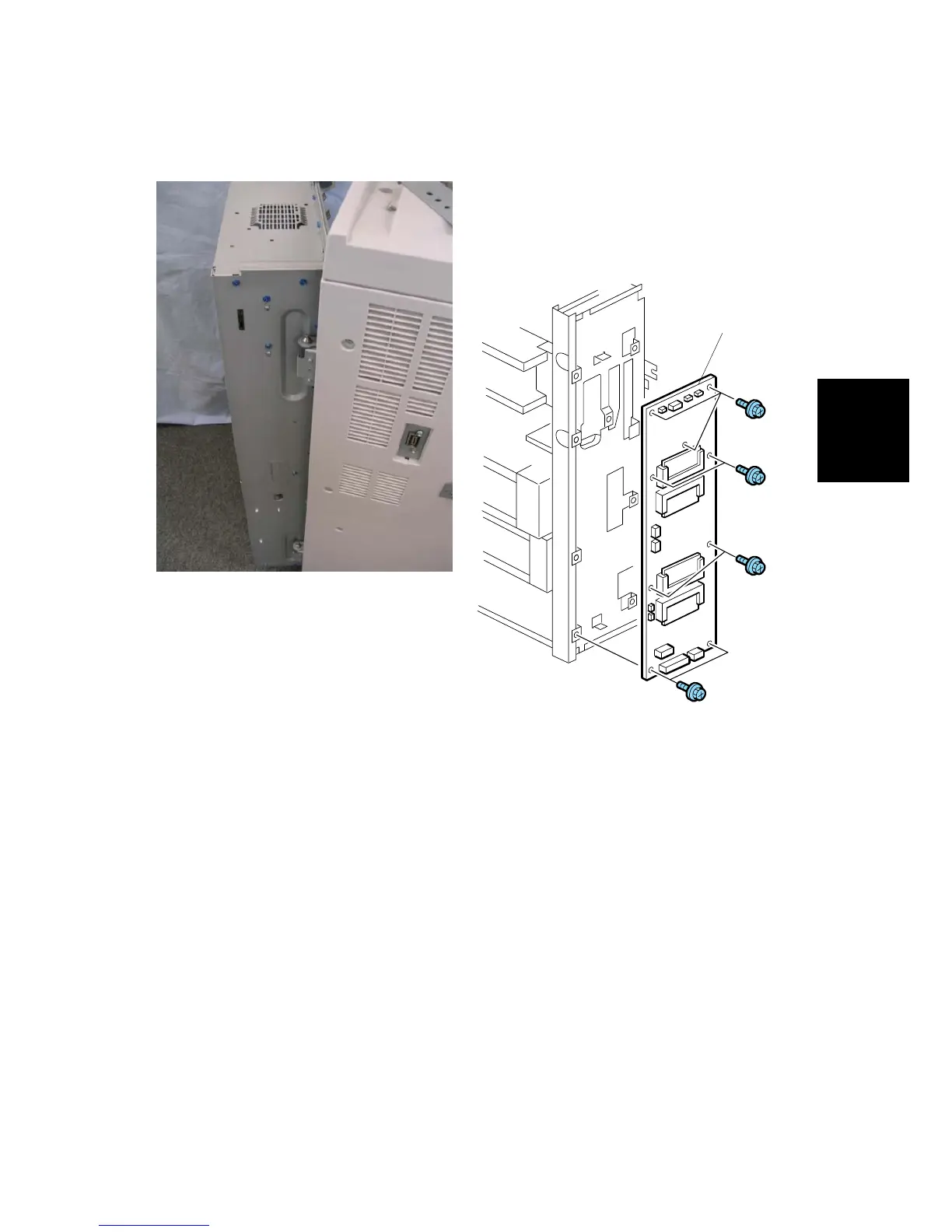

2. Remove the mother board cover [A]
• Upper hinge cover ( x1)
• Lower hinge cover ( x1)
• Cover ( x10, = x3)
3. Remove the mother board [B] ( x 9,  x 7).
B234R159.WMF
[B]
[A]
