Installation

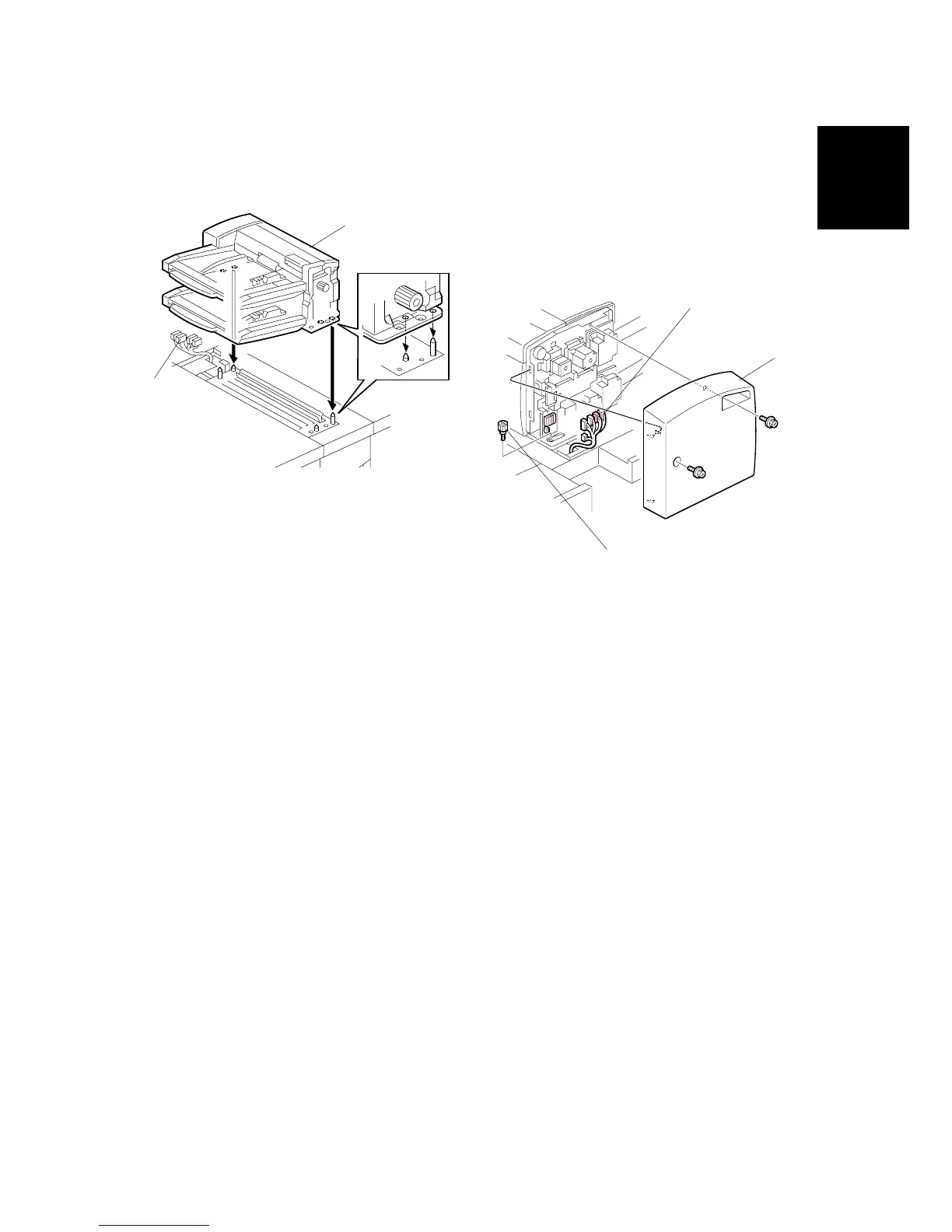

Mounting the Tray Unit
1. Remove the rear cover [A] ( x2).
2. Confirm that the connectors [B] are free.
3. Place the tray unit [C] on top of the cover interposer transport unit.
4. Attach the knob screw [D] ( x1).
5. Connect the harness connectors [E] ( x5)
6. Reattach the rear cover.
B835I111.WMF
B835I112.WMF
[B]
[C]
[A]
[D]
[E]
