Ricoh B234 - Inverting;Duplexing Path

PAPER EXIT/DUPLEX
B234/B235/B236/D101/D102/D103 6-168 SM

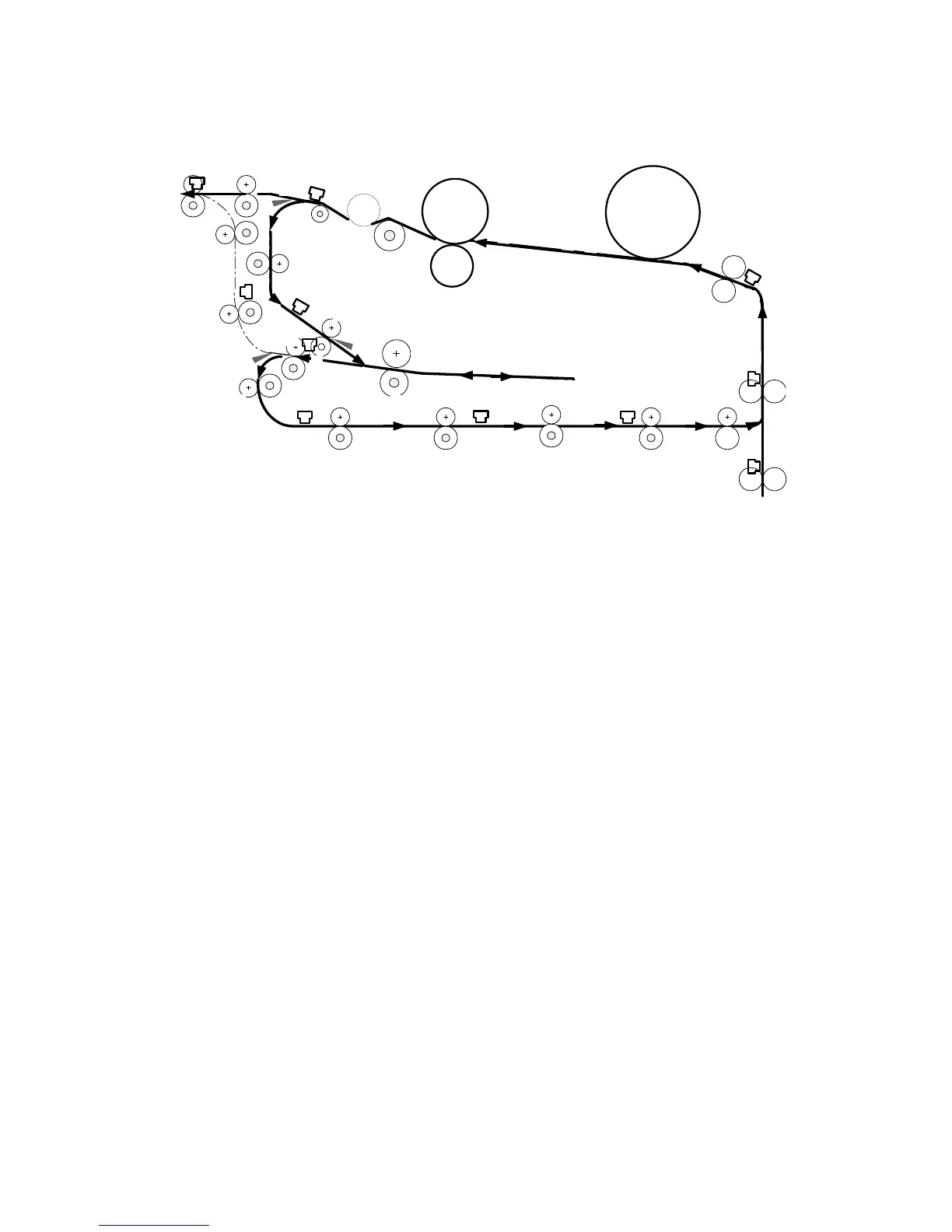

Inverting/Duplexing Path
When duplexing has been selected for the job, the paper goes:
1
Out from under the cooling pipe
2
Down into the inverter/duplexer path at the open exit junction gate
3
Through the nip of the vertical relay rollers
4
Under the duplex entrance sensor
5
Through the duplex entrance rollers
6
Through the open switchback junction gate
7
Through the switchback rollers
8
Between the switchback rollers again after the switchback junction
gate closes and the switchback roller reverses
9
Under the duplex/inverter sensor
10
Through inverter rollers 1
11
Through the open inverter/duplex junction gate down into the
duplex unit
12
Through inverter rollers 2
B234D909.WMF
1
2
3
4
5
6
7
8
9
10
13
14
15
12
11
16
[A]
[B]
[C]
[D]
[E]
[F]
[G]
[H]
17
18
