Ricoh B234 - Sensors; Paper Height Sensors

REPLACEMENT AND ADJUSTMENT
SM 9 B830
Finisher
B830
1.4 SENSORS
1.4.1 PAPER HEIGHT SENSORS

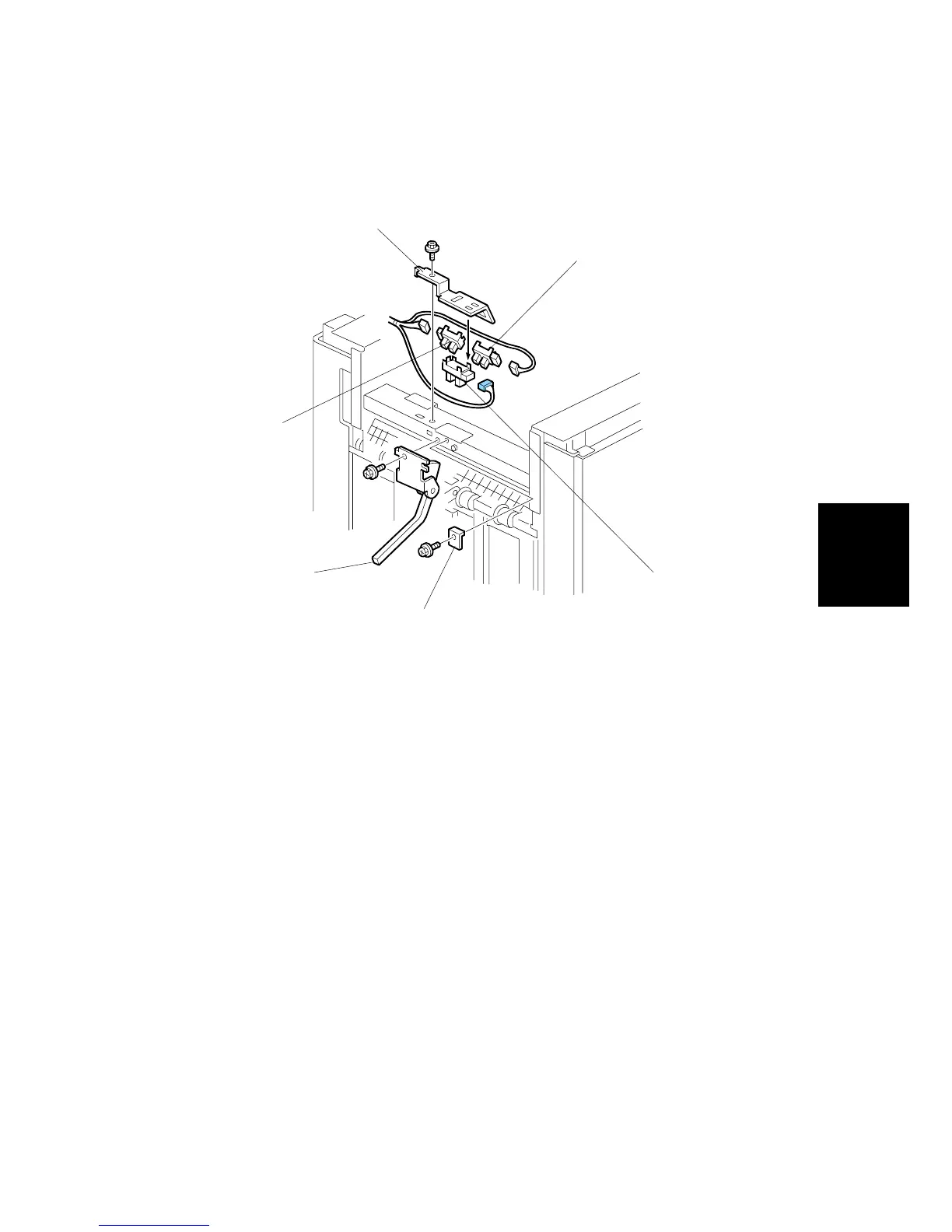

Remove:
• Top cover. (1.1.1)
• Left upper panel and left upper cover ( x 2,  x 2) (1.1.3)
[A] Protector plate ( x 1).
[B] Feeler ( x 1).
[C] Sensor bracket ( x 1).
[D] Paper height sensor – staple mode ( x 1, Pawls x4)
[E] Paper height sensor – standby mode ( x 1, Pawls x4)
[F] Paper height sensor – shift/Z-Fold( x 1, Pawls x4).
B830R509.WMF
[C]
[B]
[A]
[D]
[E]
[F]
