COPIER (B234/B235/B236/D101/D102/D103)
SM 1-29 B234/B235/B236/D101/D102/D103
Installation
Testing the Copier Breaker Switch
1. Plug the copier power cord into its power source.
NOTE: Do not turn on the copier. The copier should be off.

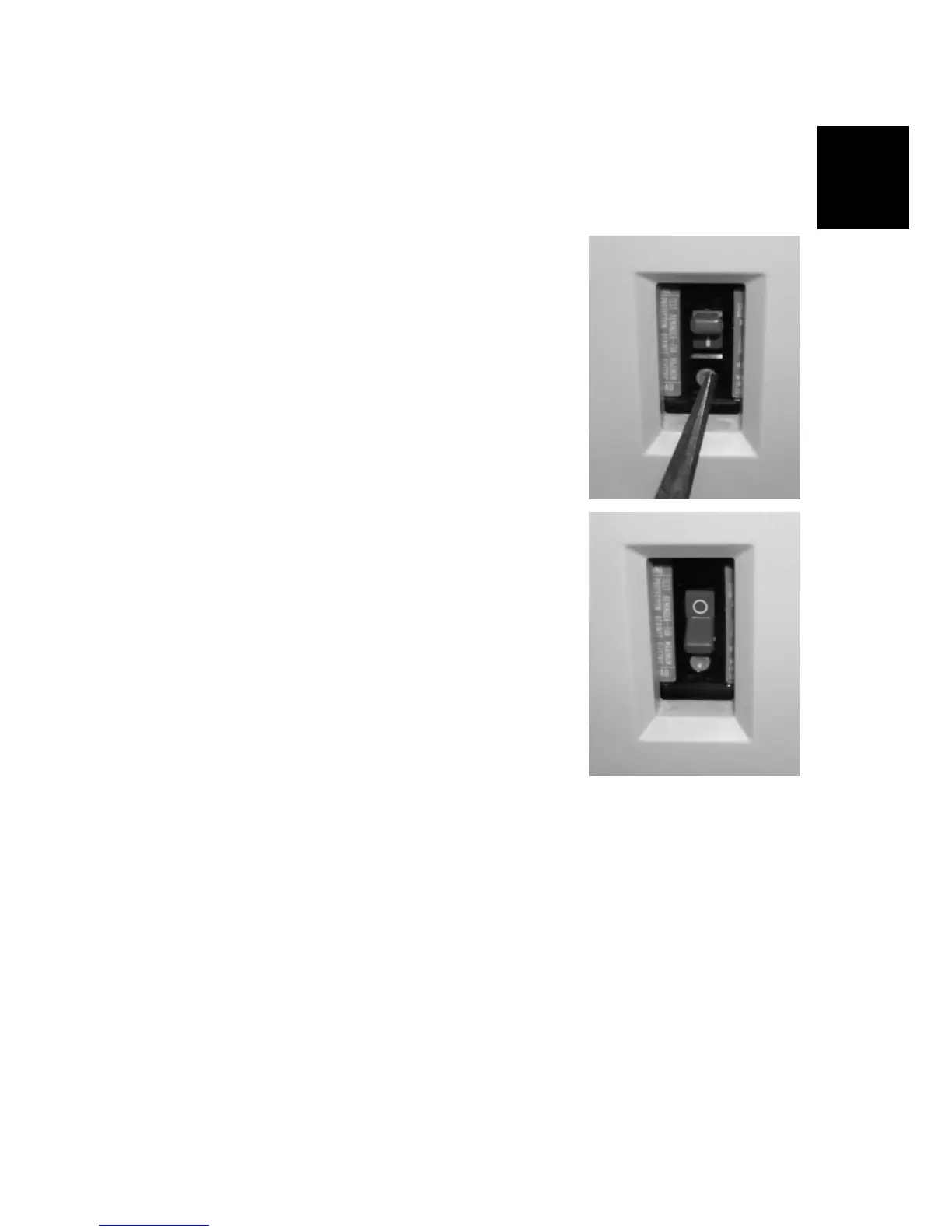

2. Use the tip of a small screwdriver to push the
breaker test button.
The breaker switch should flip to the "O" position.
This indicates that the breaker switch is operating
normally.
If the breaker switch does not flip to the "O"
position, the switch must be replaced.
3. Raise the switch to the "|" position for normal
operation.
Important
• The copier will not turn on if the breaker
switch is not returned to the "|" position.
BRKSI904.BMPP
BRKSI901.BMPP
