Ricoh B234 - Development Fan Motor

PAPER FEED
3-110
3.10.15 DEVELOPMENT FAN MOTOR
• Right upper cover ( x4) (3.3.4)
1. Tube cover [A] ( x1).
2. Fan motor unit [B] ( x 1,  x1).
3. Fan motor ( x 2)

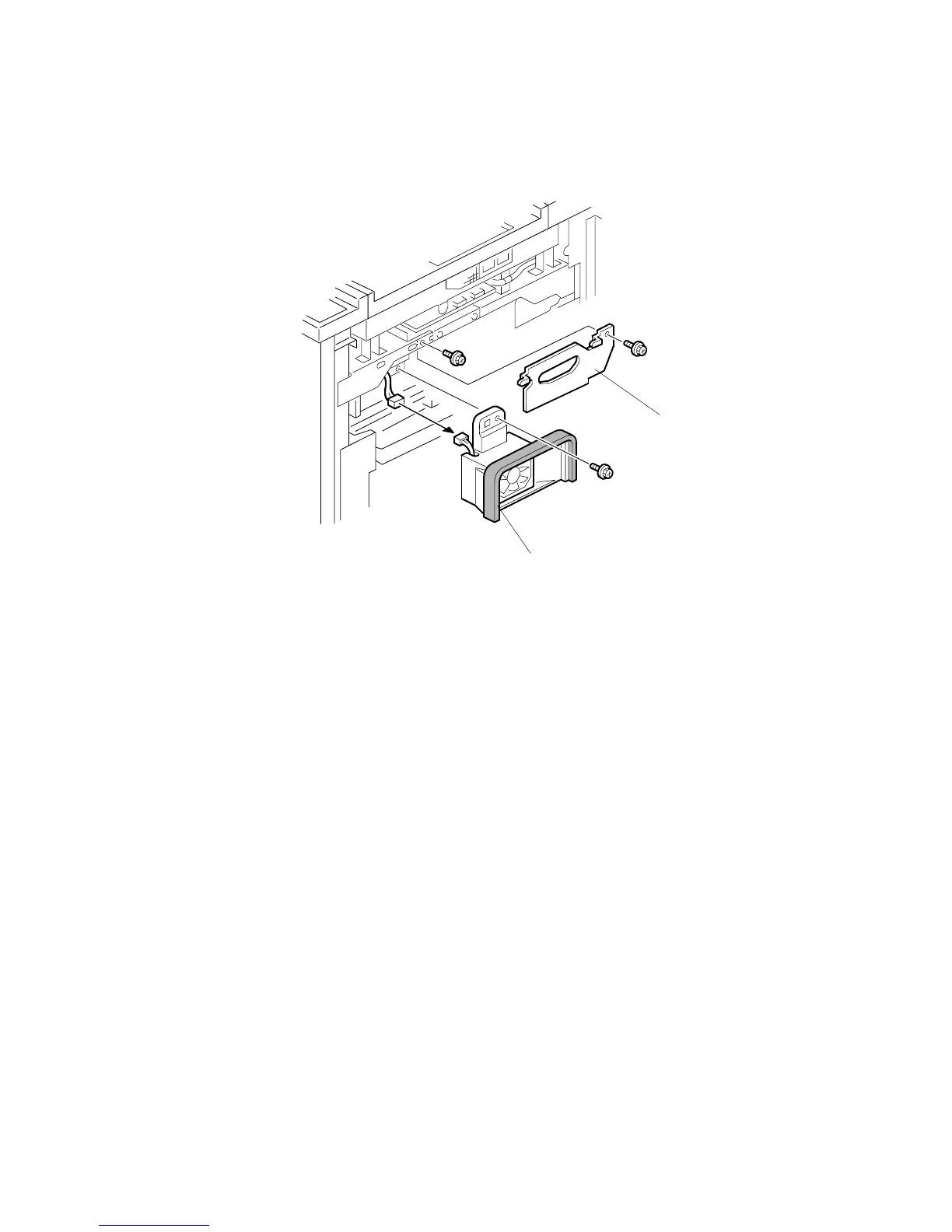

B234R939.WMF
[A]
[B]
