Skew and Side-to-Side Adjustment
SM 1-111 B234/B235/B236/D101/D102/D103
Installation
Where Skew and Side-to-Side Registration Are Adjusted
There are four locations where you can adjust the joint
bracket (see page 1-116) to correct for paper skew or
side-to-side registration shift with all the optional
peripheral units installed.
 At the output from the copier
 At the output from the cover interposer tray (B835)
 At the output from the Z-folding unit (B660)
 At the output from the booklet finisher (B836)
Here are some general rules you should follow for testing
and adjusting for paper skew or a shift in side-to-side
registration.
With all the optional peripherals installed:
• If you detect a problem at [A], do the adjustment on the
bracket  attached to the booklet finisher (B836).
• If you detect a problem at [B], (cover removed from the
booklet finisher (B836), do the adjustment on the
bracket  attached to the Z-folding unit (B660).
• If you detect a problem at [A] when the 3000-sheet
finisher (B830) is the only peripheral installed, do the
adjustment on the bracket  attached to the copier.
Important
• The bracket adjustment is done at  only if the 3000-
Sheet finisher (B830) is the only peripheral installed.
• If both the finisher (B830) and booklet finisher (B836)
are installed, the adjustment can be done at  and .
First, do the adjustment at , and do another test. If
there still a problem with skew or side-to-side
registration, do the adjustment at .

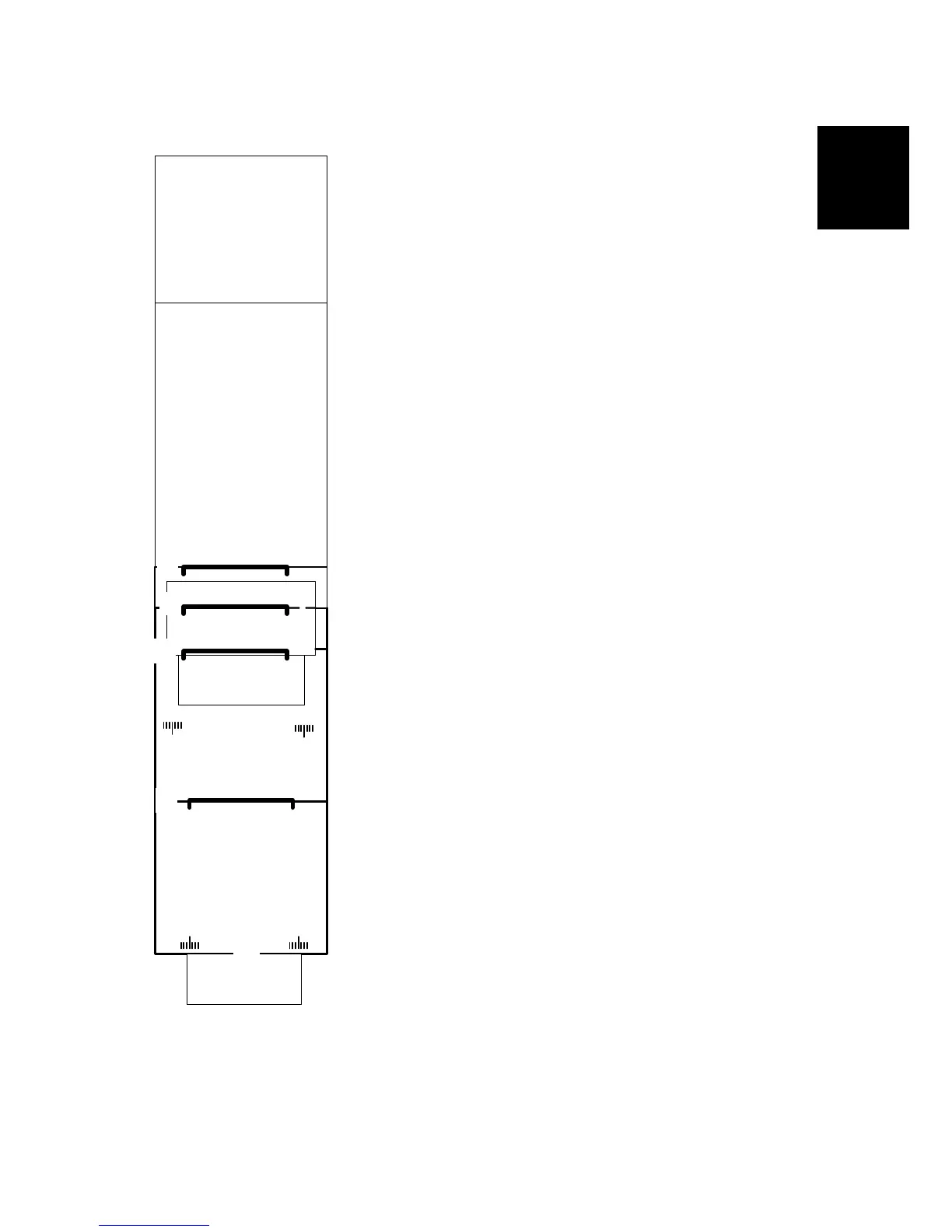

LCT
B660
B835
B836
B830
Copier
B234I920.WMF



[A]
[B]

