Before You Begin…
SM 1-9 B234/B235/B236/D101/D102/D103
Installation

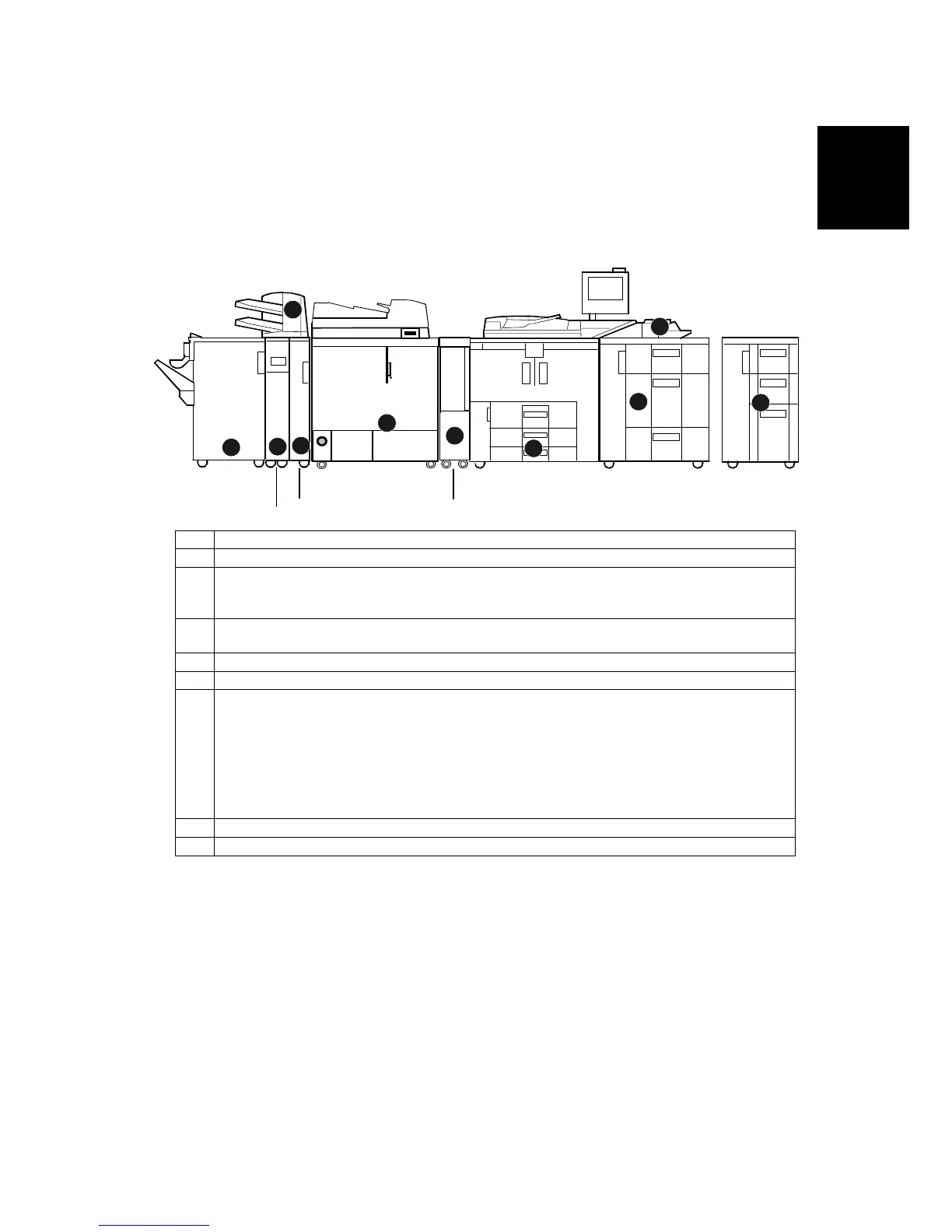

Configuration 2: Perfect Binder D391
This configuration shows the Perfect Binder D391 installed.
• The Booklet Finisher B836 cannot be installed with either the Perfect Binder
D391 or Ring Binder D392.
• The Perfect Binder D391 and Ring Binder D392 cannot be installed together.
B834
B832
B833
Copier A3/DLT LCT
A4/LT LCT
1
2
3
3
d101i921
Cover Interposer
Z-Fold Unit
4
Perfect Binder
D391
D101/D102/D103
B830
Finisher
9
B835
B660
6
7
8
5
D391
Relay Unit
4
Mainframe
Multi Bypass Tray B833
LCIT RT5010 (B834), or LCIT RT5000 (B832)
Important! The Multi Bypass Tray (B833) must be installed on the LCT before the LCT
is docked to the mainframe.
Transit Path Unit D391 (Relay Unit). Required for installation of the Perfect Binder
D391.
Perfect Binder D391.
Cover Interposer Tray CI5010 B835 (Transport Unit)
Z-Folding Unit ZF4000 (B660) (or next peripheral in line)
Important!
• The Transport Unit (base) of the Cover Interposer Tray is narrow and cannot fully
support its tray unit. Part of the tray unit must rest on top of the Z-folding unit (or the
next peripheral device installed to the left of the cover interposer).
• To prevent the Cover Interposer Tray from falling, always install the next peripheral
device in line before installing the tray unit of the Cover Interposer Tray.
Cover Interposer Tray (Tray Unit)
Finisher SR5000 (B830)
To Next Page
