FUSING UNIT
SM 3-135 B234/B235/B236/D101/D102/D103
Replacement
Adjustment
Re-installing the Fusing Lamps

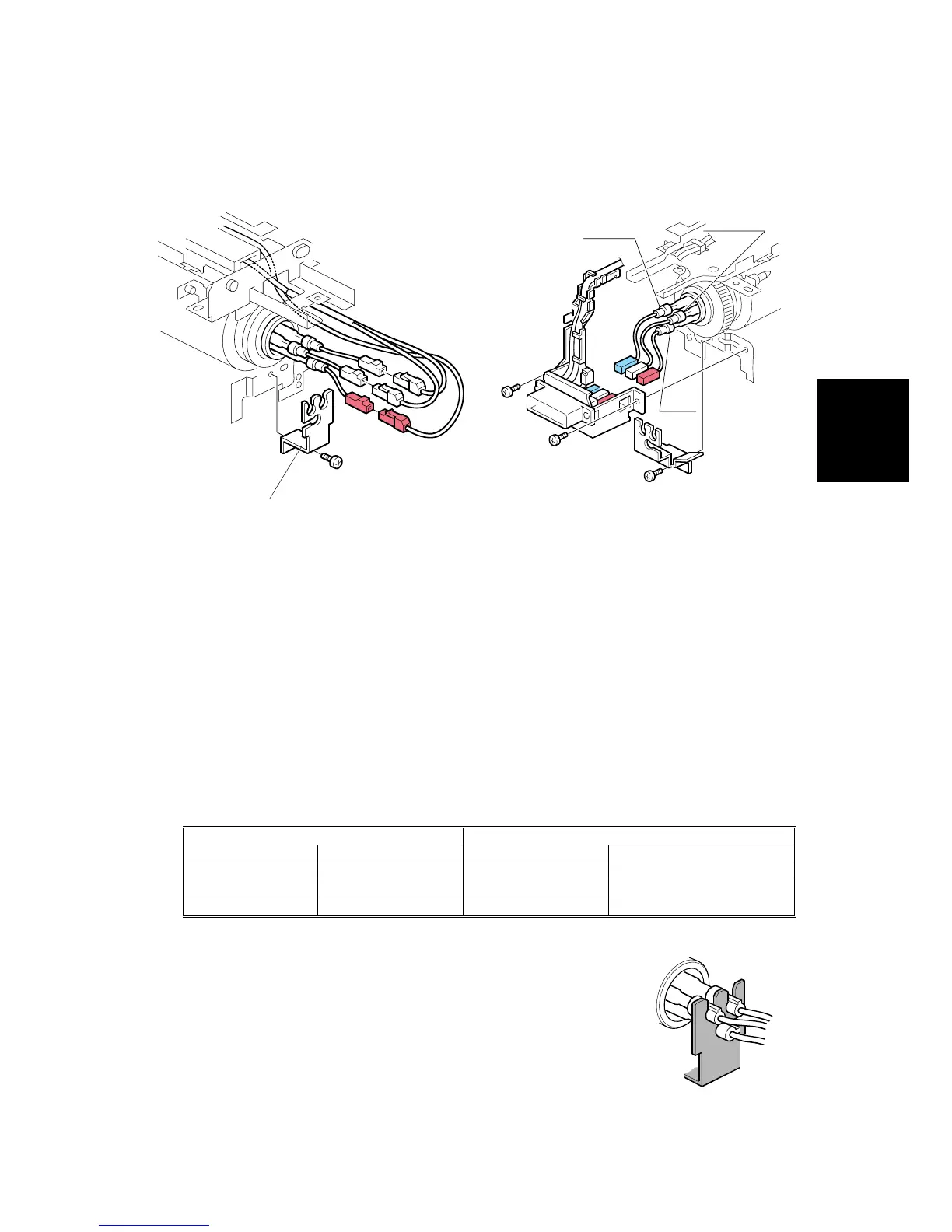

1. Insert each fusing lamp [A], [B], [C] into the rear of the hot roller, then gently
push the fusing lamps into the roller.
Important: Never touch the glass surface of a fusing lamp with bare fingers.
Handle the lamps carefully to avoid breaking them.
2. Lay the tip of each fusing lamp into any round hole in the front holder [D] and
fasten the holder ( x1).
3. Insert the tip of each fusing lamp into a round hole in the rear holder [E] and
fasten the holder ( x1).
NOTE: Make sure the lamps are perfectly parallel inside the hot roller.
4. Attach the connectors. Refer to the table below.
Connection Table
B234/B235/D101/D102 B236/D103
Front Rear Front Rear
Red Red Red Red
White White Yellow Yellow
White Blue White Blue
5. Make sure the ends of the fusing lamps fit snugly into
the holes in the bracket.
B234R506.WMF
900W
600W
900W
B234R505.WMF
B234R505B.WMFMF
Front
Rear
B236/D103
[A]
[B]
[C]
[D]
[E]
To Next Page
