REPLACEMENT AND ADJUSTMENT
SM 11 B832
LCIT
B832

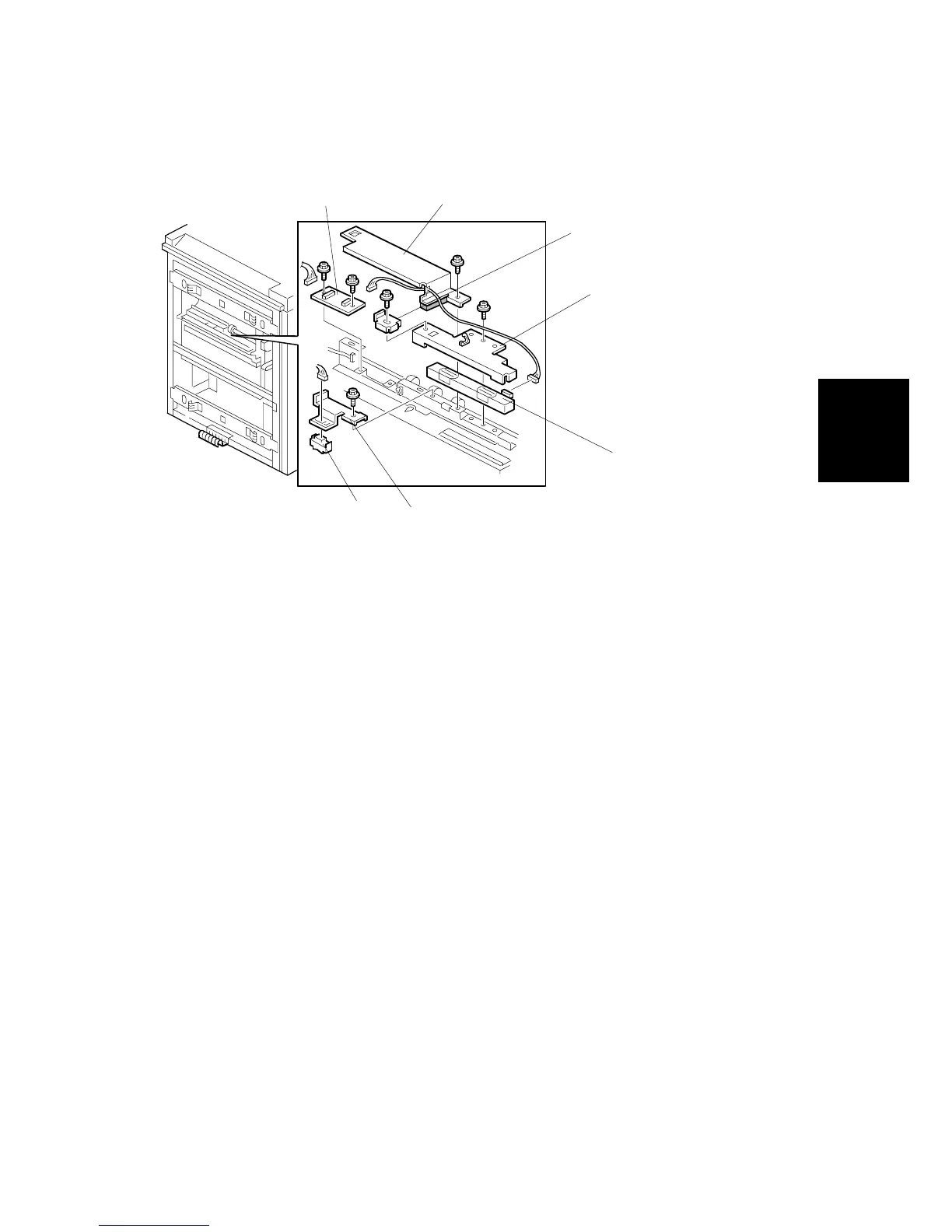

1.5 IMAGE POSITION SENSOR BOARD, EXIT SENSOR
Image Position Sensor
Disconnect the LCT from the copier.
[A] Harness cover ( x1, = x1)
[B] Image position sensor unit
( x1, = x1, x1)
[C] Stopper ( x1)
[D] Image position sensor
• After replacing the image position sensor,
do the procedure for image position sensor adjustment. (1.9)
Image Position Sensor Board
[E] Image position sensor board
( x2, = x1, x2)
Exit Sensor
[F] Exit sensor unit ( x1,  x1, = x1)
[G] Exit sensor
B832R113.WMF
[A]
[B]
[C]
[D]
[E]
[G]
[F]
