1.13 SKEW AND SIDE-TO-SIDE ADJUSTMENT
1.13.1 SKEW AND SIDE-TO-SIDE REGISTRATION ADJUSTMENT
What Is Skew and Side-to-Side Registration Shift?
The paper feed path is extremely long when all the post-processing feed options
are installed. In such a long path, the cumulative effect of paper skew and deviation
in side-to-side registration may require adjustment.
• Skew appears when the paper rotates away from the direction of paper feed.
• If side-to-side registration shifts, the sheet remains straight but shifts left or
right away from center.

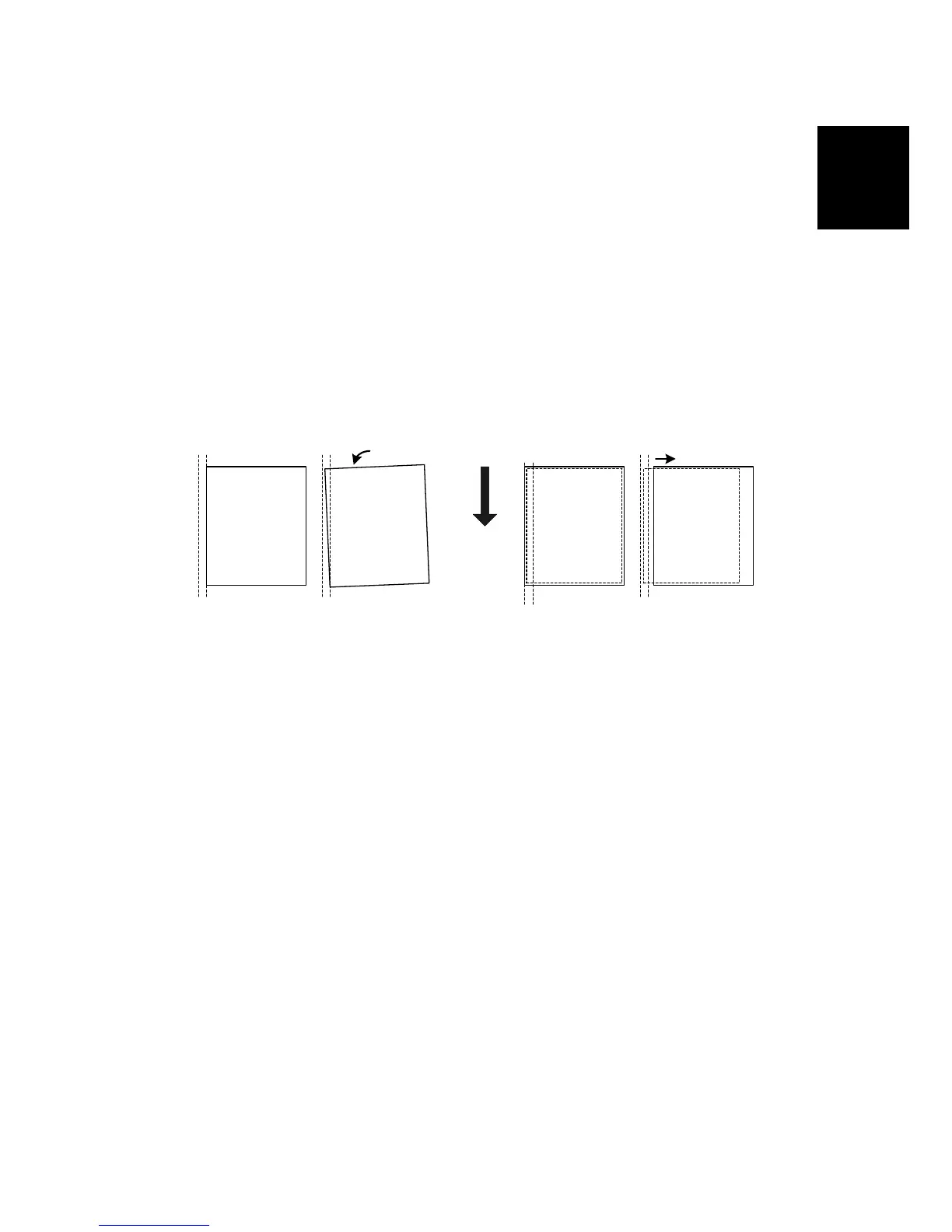

B234I912.WMF
Skew
Side-to-Side Registration Shift
Feed
Direction
