DOCUMENT FEEDER
SM 3-25 B234/B235/B236/D101/D102/D103
Replacement
Adjustment
3.4.7 TRANSPORT BELT
1. Front cover. (3.4.1)

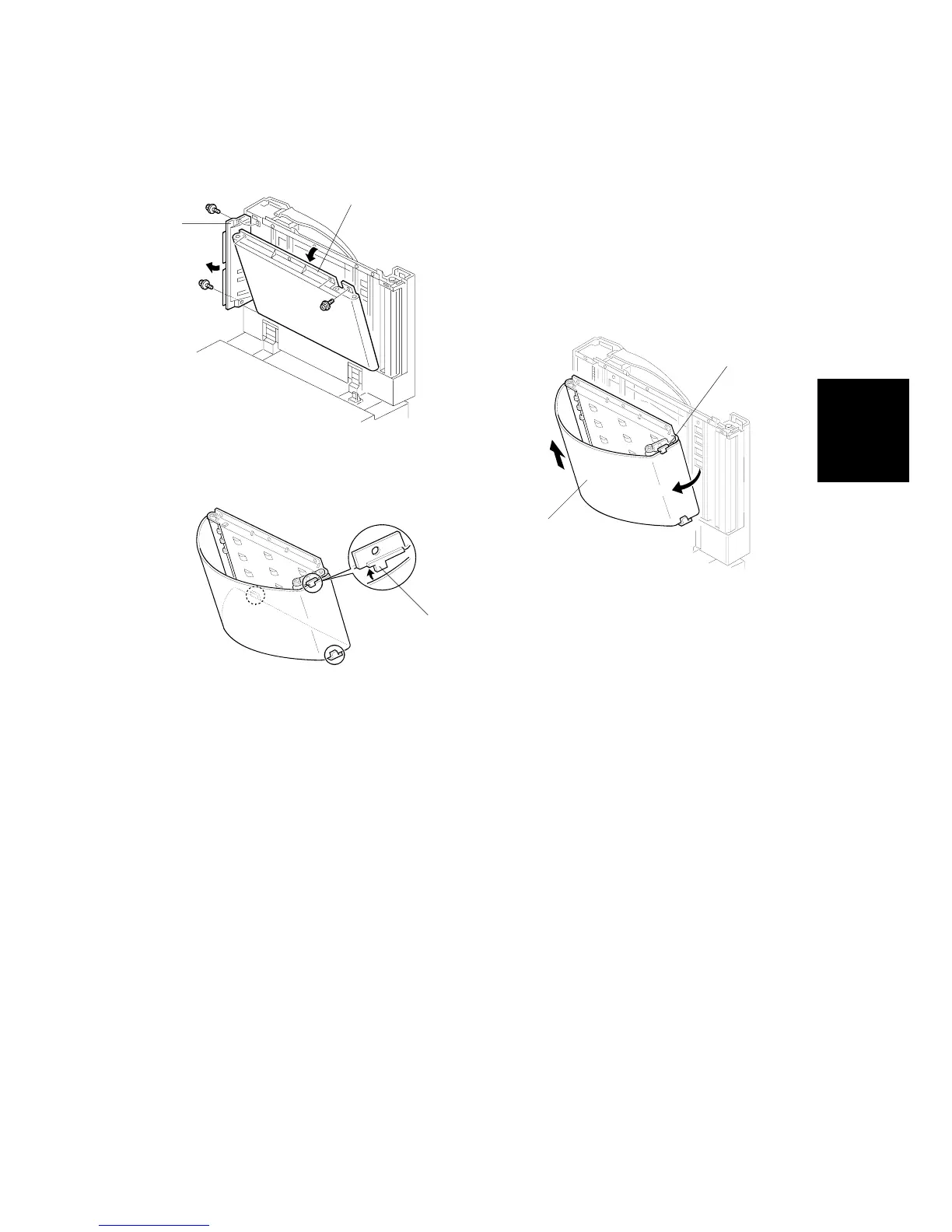

2. Release the entrance guide [A] ( x 2).
3. Release the transport belt unit [B] ( x 3).
4. Fold the transport belt assembly extension [C].
5. Transport belt [D].
NOTE: When installing the transport belt, make sure that the belt passes under
the upper and lower belt guide spacers [E].
6. Execute SP6009 (DF Free Run) to do an ADF free run for 3 minutes. After the
free run is finished, clean off any dust on the exposure glass.
