Ricoh B234 - Tray Lock - Tray

PAPER FEED
SM 6-121 B234/B235/B236/D101/D102/D103
Detailed
Descriptions
6.14.7 TRAY LOCK – TRAY 2, 3

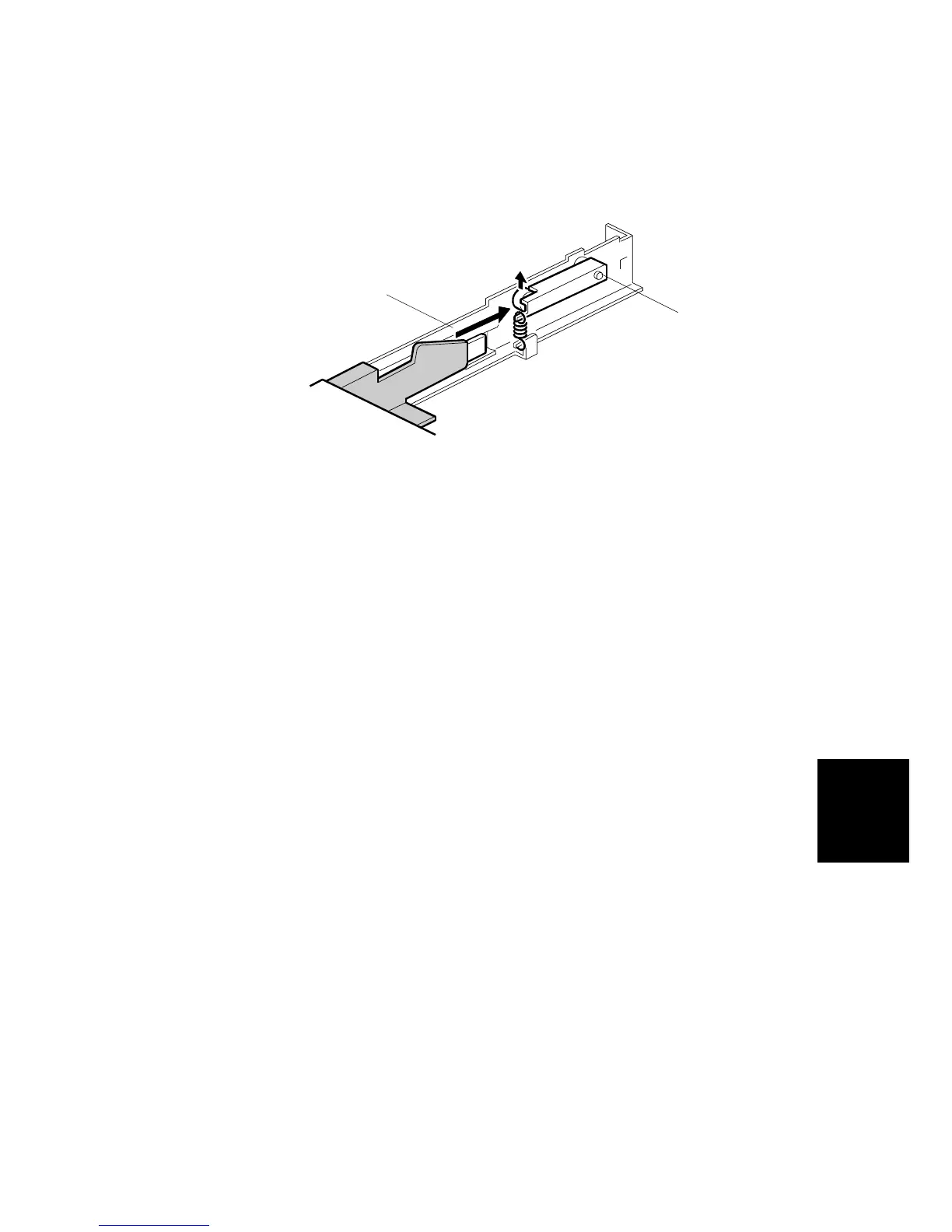

When the tray is placed in the paper feed unit, the lock lever [A] drops behind the
lock plate [B] on the support bracket to lock the tray in the proper position.
B234D962.WMF
[B]
[A]
