BEFORE YOU BEGIN…
B234/B235/B236/D101/D102/D103 1-8 SM
1.2.2 D101/D102/D102 OVERVIEW OF OPTIONAL
PERIPHERALS
There are many peripherals available for this machine. Install them in the order
described below.

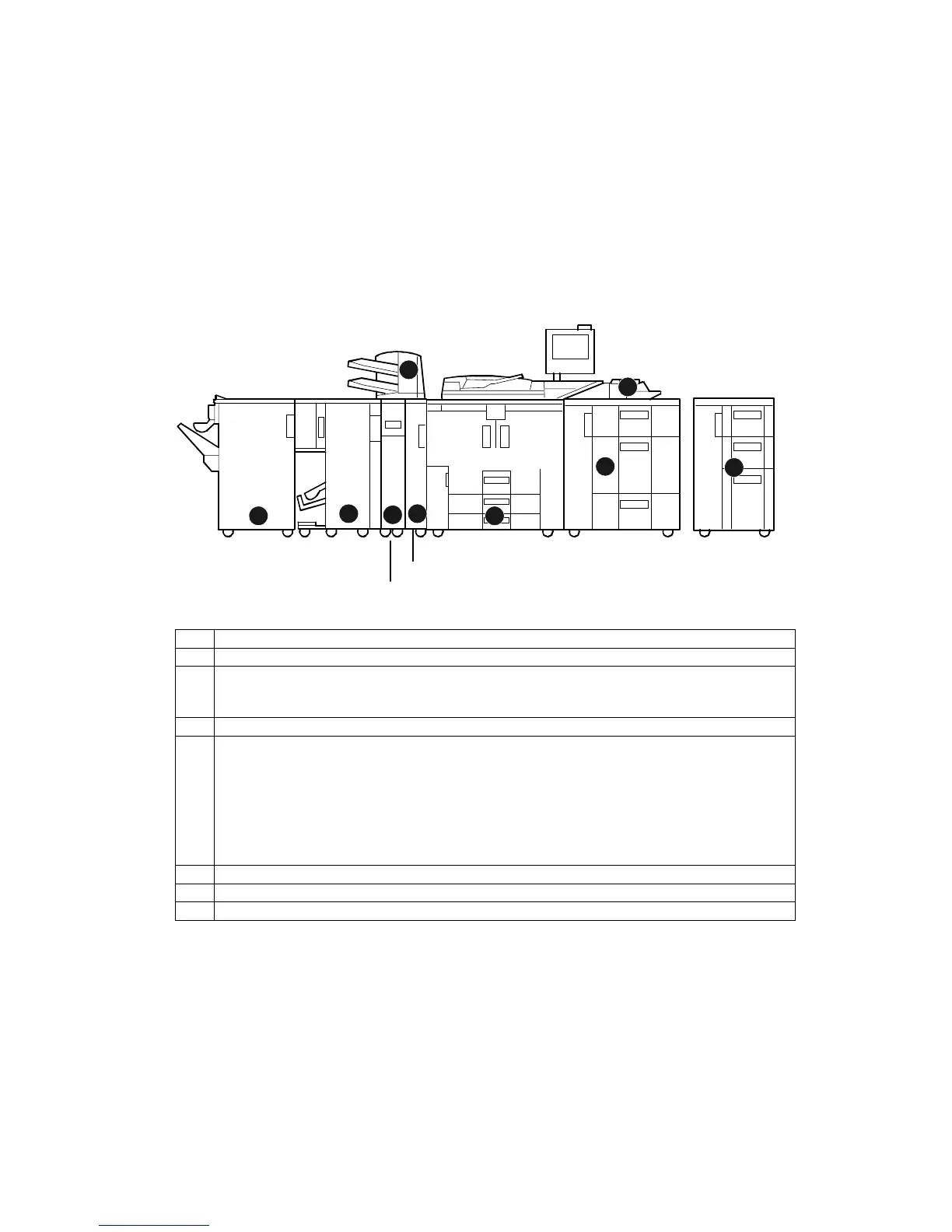

Configuration 1: Booklet Finisher B836
This configuration shows the Booklet Finisher B836 installed. The booklet finisher
cannot be installed with either the Perfect Binder D391 or Ring Binder D392.
Mainframe
Multi Bypass Tray B833
LCIT RT5010 (B834), or LCIT RT5000 (B832)
Important! The Multi Bypass Tray (B833) must be installed on the LCT before the LCT
is docked to the mainframe.
Cover Interposer Tray CI5010 B835 (Transport Unit)
Z-Folding Unit ZF4000 (B660) (or next peripheral in line)
Important!
• The Transport Unit (base) of the Cover Interposer Tray is narrow and cannot fully
support its tray unit. Part of the tray unit must rest on top of the Z-folding unit (or the
next peripheral device installed to the left of the cover interposer).
• To prevent the Cover Interposer Tray from falling, always install the next peripheral
device in line before installing the tray unit of the Cover Interposer Tray.
Cover Interposer Tray (Tray Unit)
Booklet Finisher BK5000 (B836)
Finisher SR5000 (B830)
B834
B832
B833
B835
B660
B836
B830
Finisher
Booklet
Finisher
Copier
Cover Interposer
Z-Fold Unit
A3/DLT LCT
A4/LT LCT
D101/D102/D103
1
2
3
3
4
5
6
7
8
d101i920
D101I920.WMF
To Next Page
