1.2 BEFORE YOU BEGIN…
1.2.1 B234/B235/B236 OVERVIEW OF OPTIONAL
PERIPHERALS
There are many peripherals available for this machine. Install them in this order:
 Mainframe
 Multi Bypass Tray B833
 LCIT RT5010 (B834), or LCIT RT5000 (B832)
Important! The Multi Bypass Tray (B833) must be installed on the LCT before
the LCT is docked to the mainframe.
 Cover Interposer Tray CI5000 B835 (Transport Unit)
 Z-Folding Unit ZF4000 (B660) (or next peripheral in line)
Important!
• The Transport Unit (base) of the Cover Interposer Tray is narrow and
cannot fully support its tray unit. Part of the tray unit must rest on top of the
Z-folding unit (or the next peripheral device installed to the left of the cover
interposer).
• To prevent the Cover Interposer Tray from falling, always install the next
peripheral device in line before installing the tray unit  of the Cover
Interposer Tray.
 Cover Interposer Tray (Tray Unit)
 Booklet Finisher BK5000 (B836)
 Finisher SR5000 (B830)

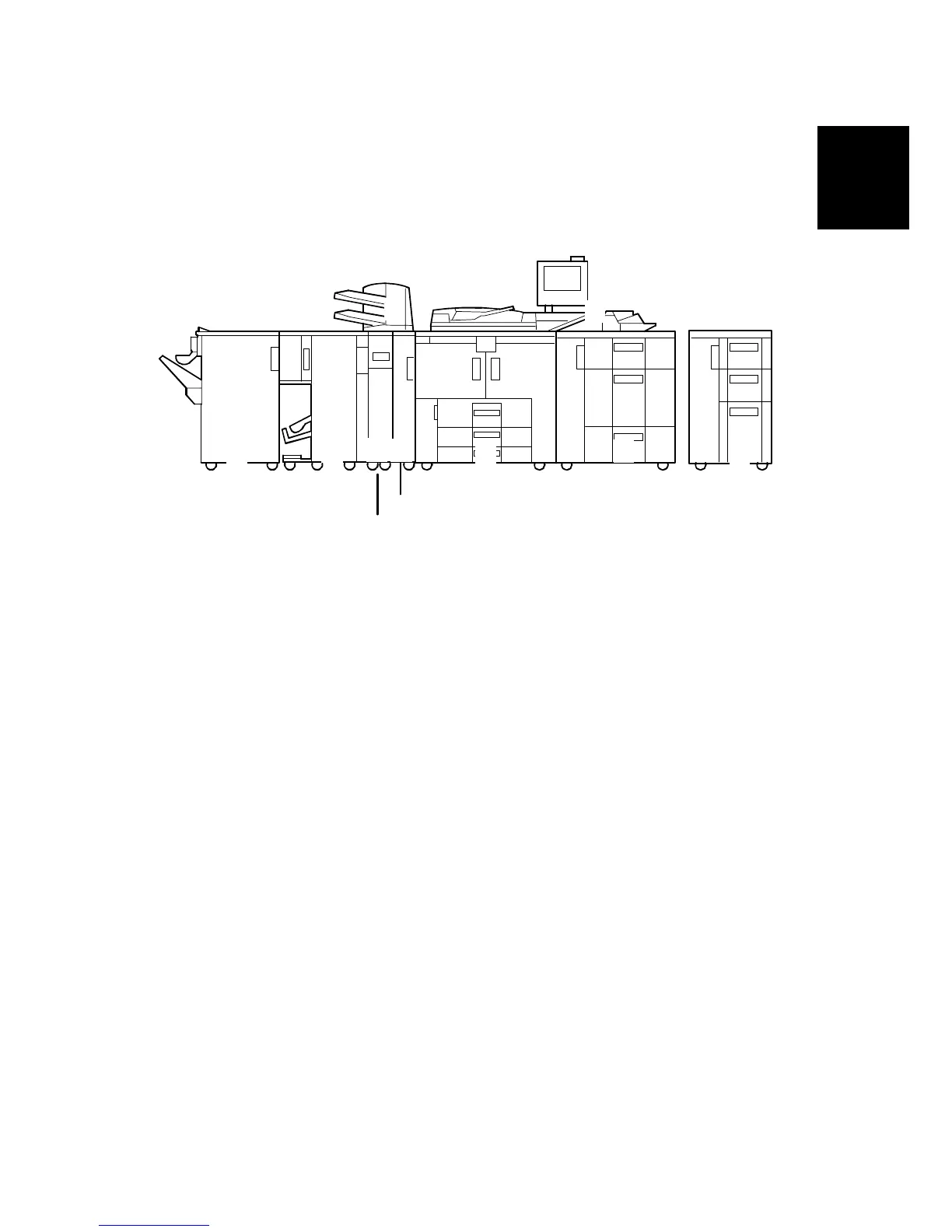

B834
B832
B833
B234/235/236
B835 B660 B836
B830
Finisher
Booklet
Finisher
Copier
Cover Interposer
Z-Fold Unit
A3/DLT LCT
A4/LT LCT
B234I412C.WMF









