Ricoh B234 - Fold Timing Sensor

REPLACEMENT AND ADJUSTMENT
B660 6 SM

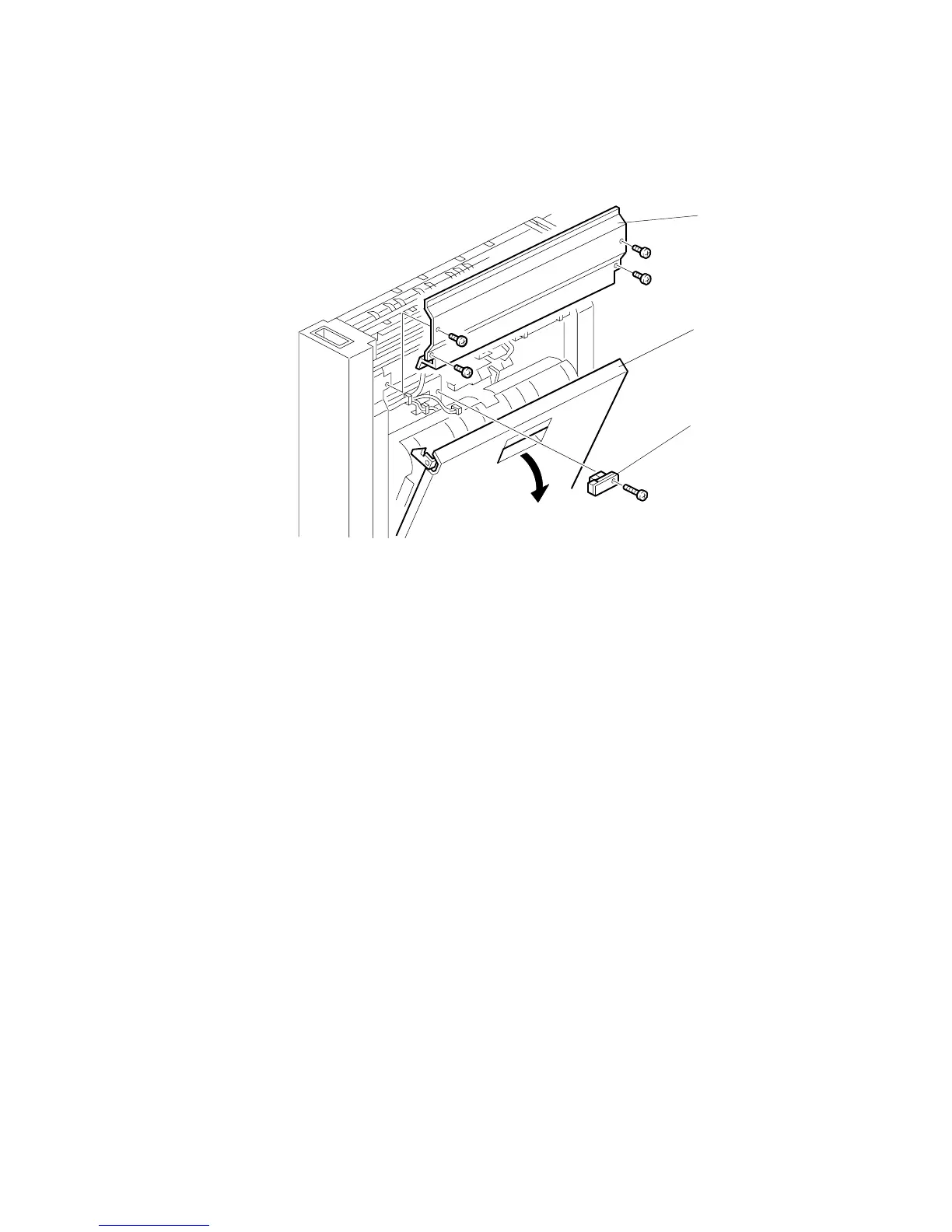

1.6 FOLD TIMING SENSOR
Pull the Z-fold mechanism out of the unit.
[A]: Open the right vertical transport unit cover.
[B]: Plate ( x 4)
[C]: Fold timing sensor ( x 1,  x 1)
B660R105.WMF
[A]
[B]
[C]
