Ricoh B234 - Lamp Regulators

SCANNER UNIT
3-34
3.5.5 LAMP REGULATORS
1. Exposure glass. (3.5.1)
2. Open the front door, then remove the top front cover. (3.5.8)
3. Remove
[E]: Left inner cover ( x 2)
[F]: Right inner cover ( x 2)
[G]: Middle inner cover ( x 2)
[H]: Lamp regulator cover ( x 2)
[I]: Left lamp regulator ( x 2,  x 2)
[J]: Right lamp regulator ( x 2,  x 2)

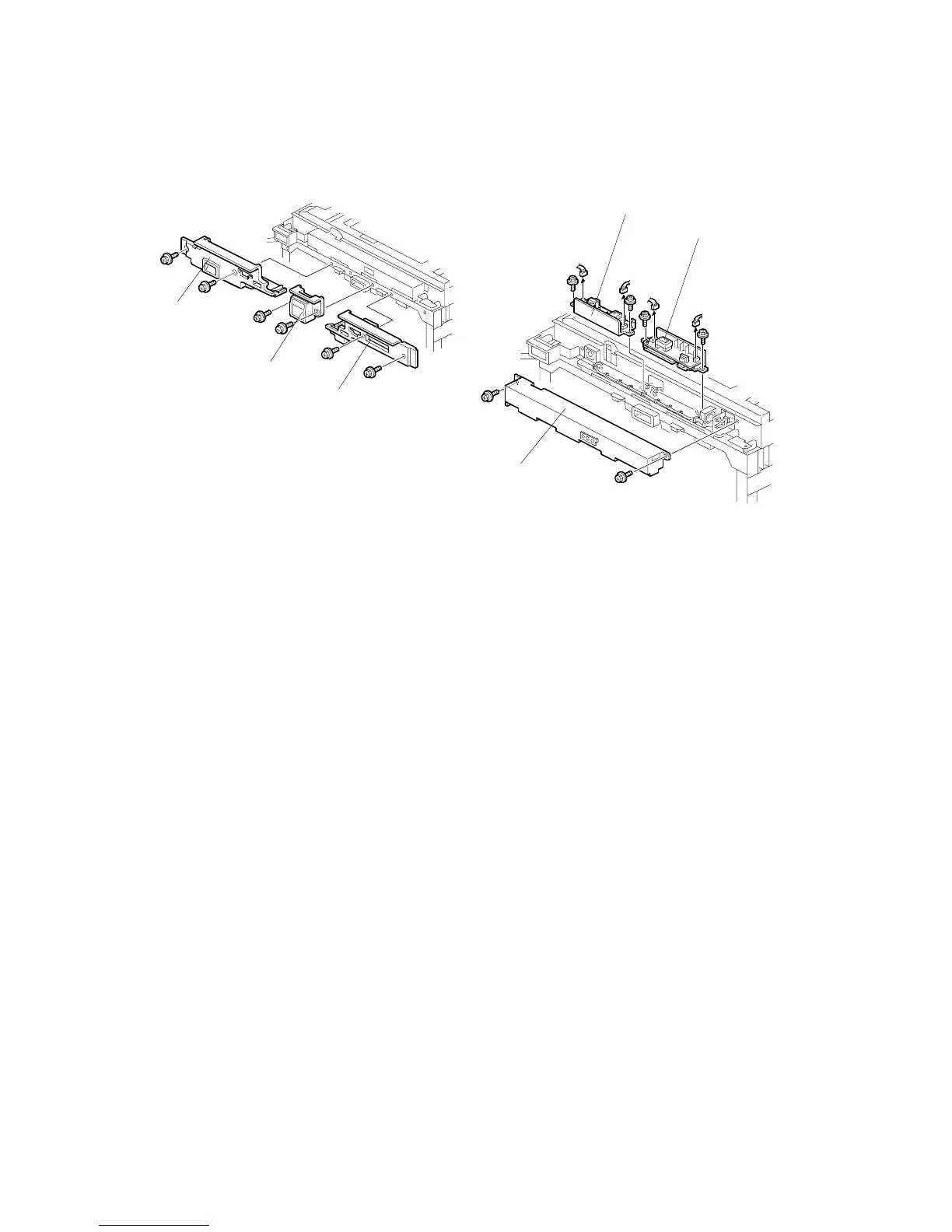

B234R007A.WMF
B234R007B.WMF
[A]
[C]
[B]
[D]
[E]
[F]
