FUSING UNIT
3-136

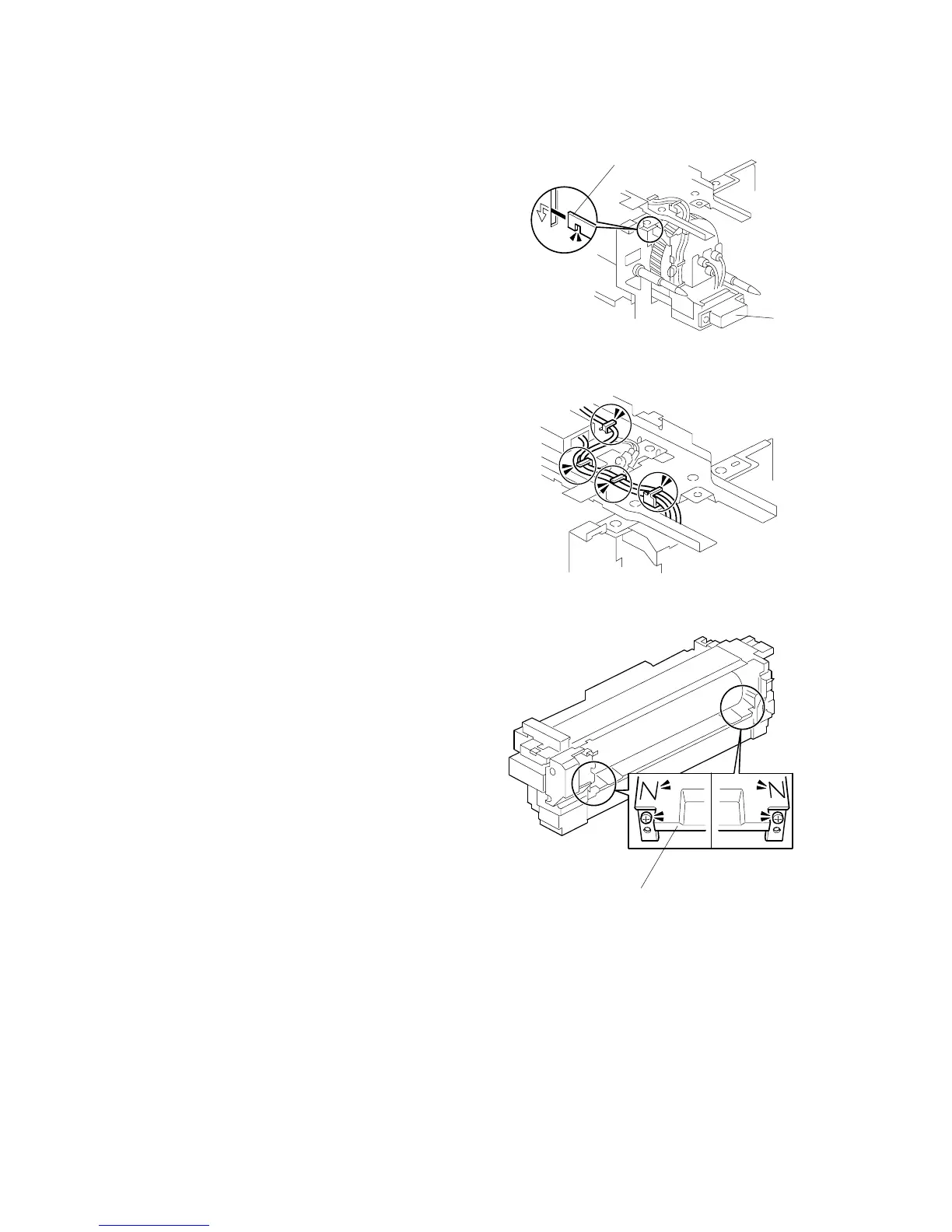

6. Connect hooks [A] of the harness
terminal brackets [B] to the slots in the
frame at two points and fasten ( x2).
Checklist
End of each fusing lamp securely inserted
into holders at each end?
Connectors connected properly (refer to
previous table)?
Are all the connectors tightly fastened?
Are the cables all secured properly by the
4 terminal bracket clamps as shown?
7. Attach the fusing entrance guide [C]
( x2).
8. Clean the entire fusing unit with a
blower brush. Rotate the hot roller
gear while vacuuming.
Checklist
Is the surface of the hot roller clean
and free of dirt, scratches, dust?
Are the holes on the top of the
fusing entrance guide plate free?
9. If you change the entrance guide,
check for a stamp on both ends of the
entrance guide, to make sure that you
install the correct type of entrance
guide:
• N: North America
• No stamp: EU/AA
B234R510B.WMF
B234R510A.WMFWMF
B234R507D.WMF
[A]
[B]
[C]
