FUSING UNIT
3-122

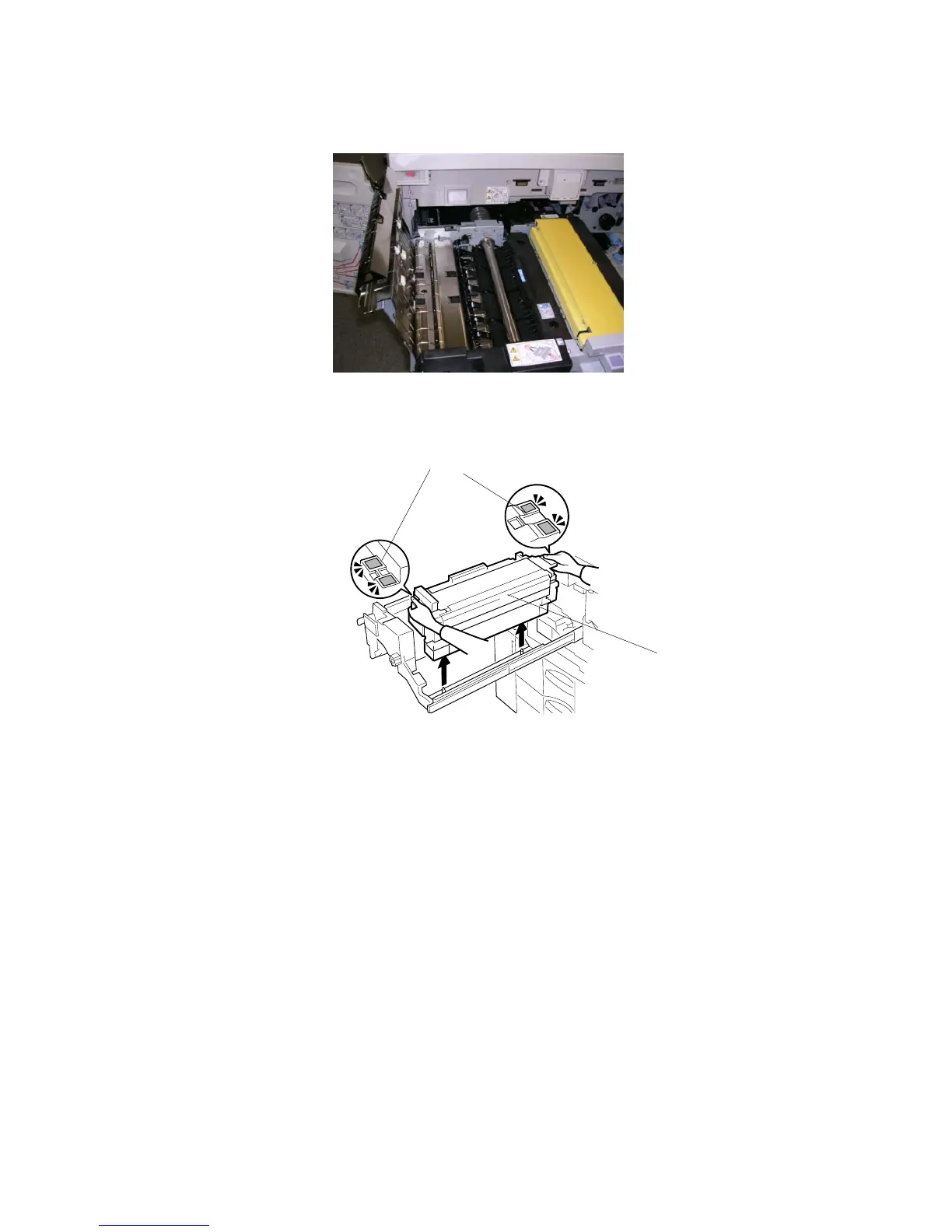

3. Raise lever D3 [A] until it stops.
4. Firmly grip the purple handles [B] of the fusing unit [C] with both hands, lift the
fusing unit and remove it.
CAUTION: The fusing unit weights approximately 14 kg (30.9 lb.). Handle it
carefully when you lift it and set it down.
5. Set the fusing unit down on its bottom.
B234R899.WMFF
[A]
[B]
[C]
