C
HAPTER
14
| Basic Administration Protocols
Connectivity Fault Management
– 530 –
To show the configured maintenance associations:
1. Click Administration, CFM.
2. Select Configure MA from the Step list.
3. Select Show from the Action list.
4. Select an entry from the MD Index list.

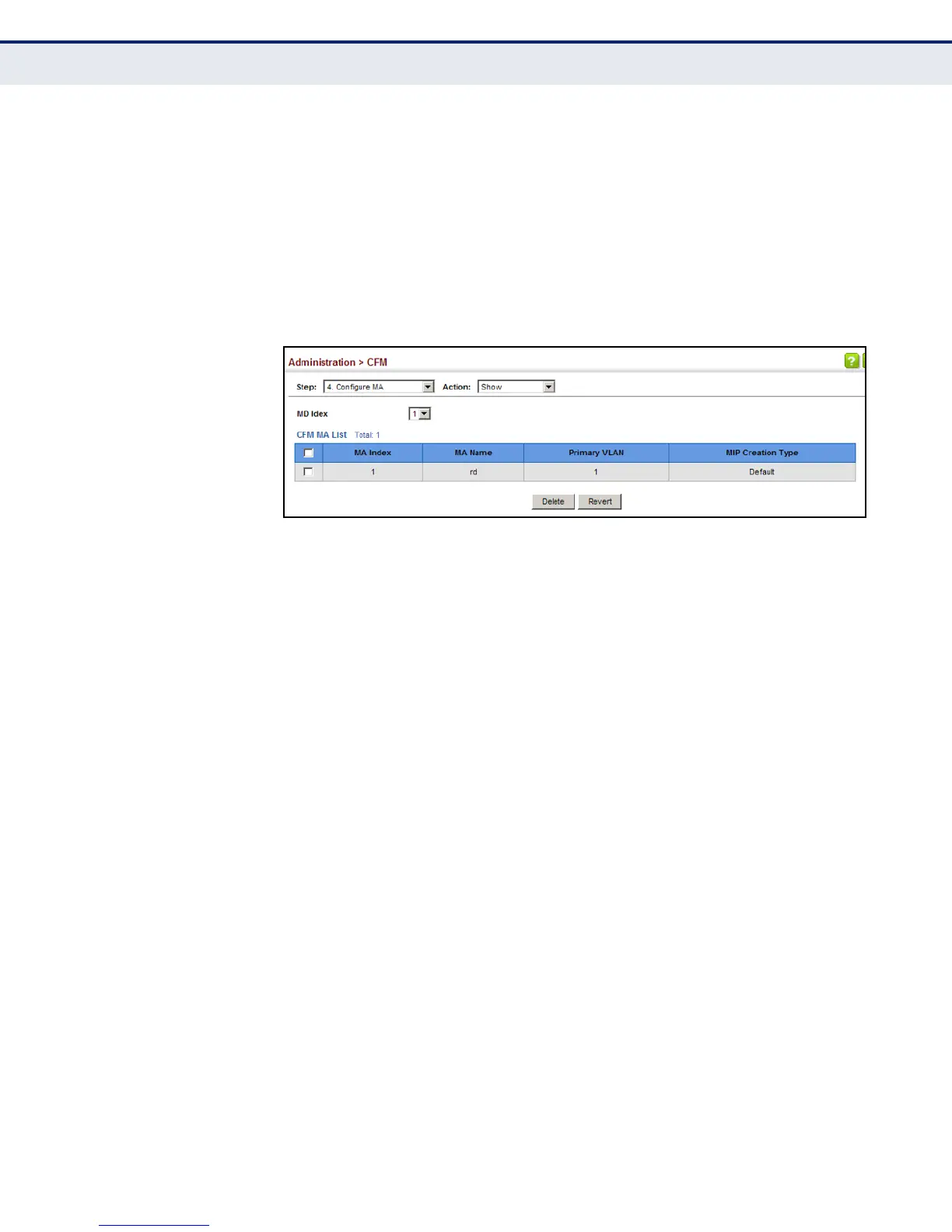

Figure 302: Showing Maintenance Associations
To configure detailed settings for maintenance associations:
1. Click Administration, CFM.
2. Select Configure MA from the Step list.
3. Select Configure Details from the Action list.
4. Select an entry from MD Index and MA Index.
5. Specify the CCM interval, enable the transmission of connectivity check
and cross check messages, and configure the required AIS parameters.
6. Click Apply
