Airwaygases

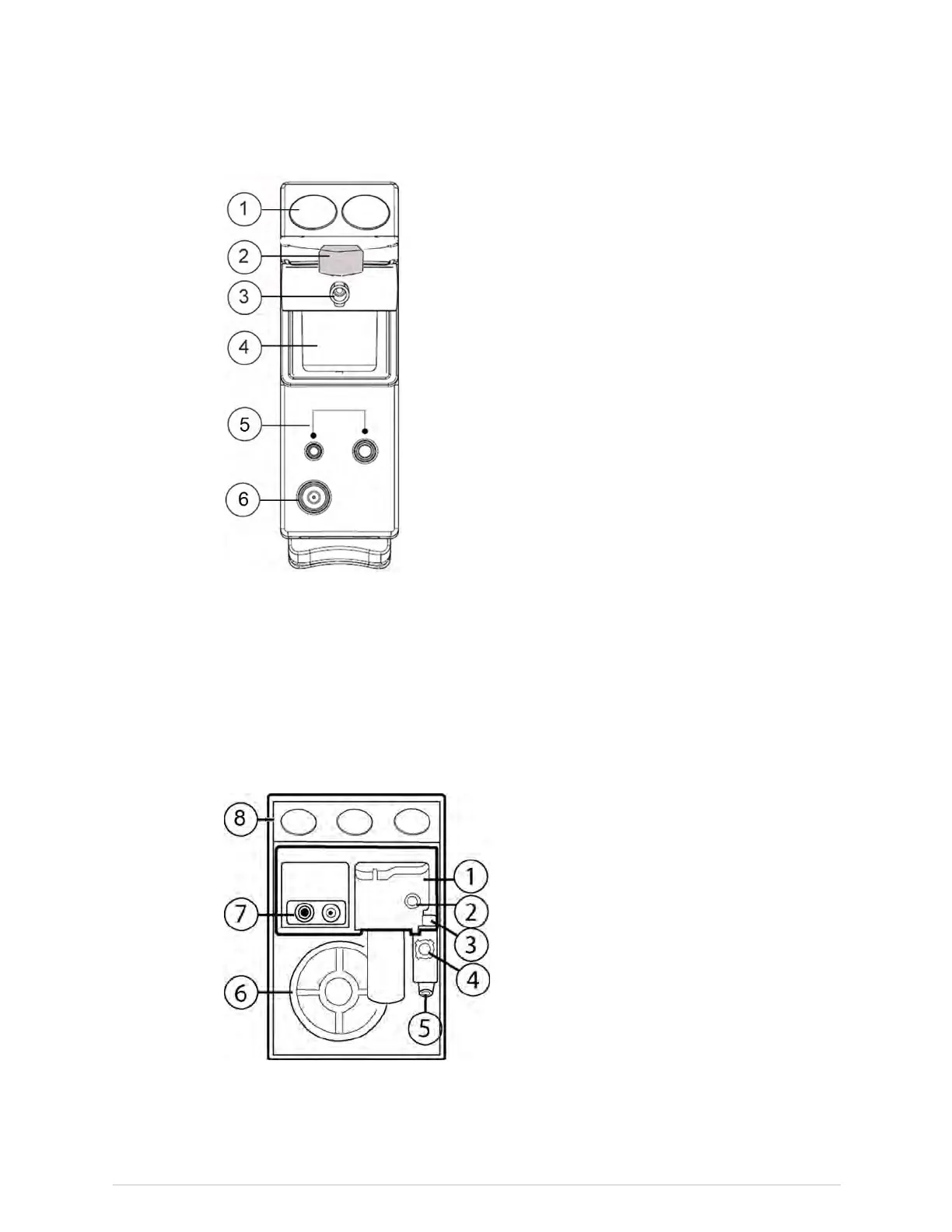

CARESCAPErespiratorymoduleconnectors

1.PatientSpirometrykeys

2.Watertraprelease/lockinglatch

3.Gassample,samplinglineconnectoronthewatertrap

4.Watertrapcontainer

5.ConnectorsforPatientSpirometrytubes

6.Gasexhaust,connectorforthegasexhaustline

Compactairwaymoduleconnectors

1.D-fendwatertrapwithwashablecontainer

2.Samplinglineconnectoronthewatertrap

3.Watertraplatch

2062971-001CARESCAPEModularMonitors287
