Systemintroduction

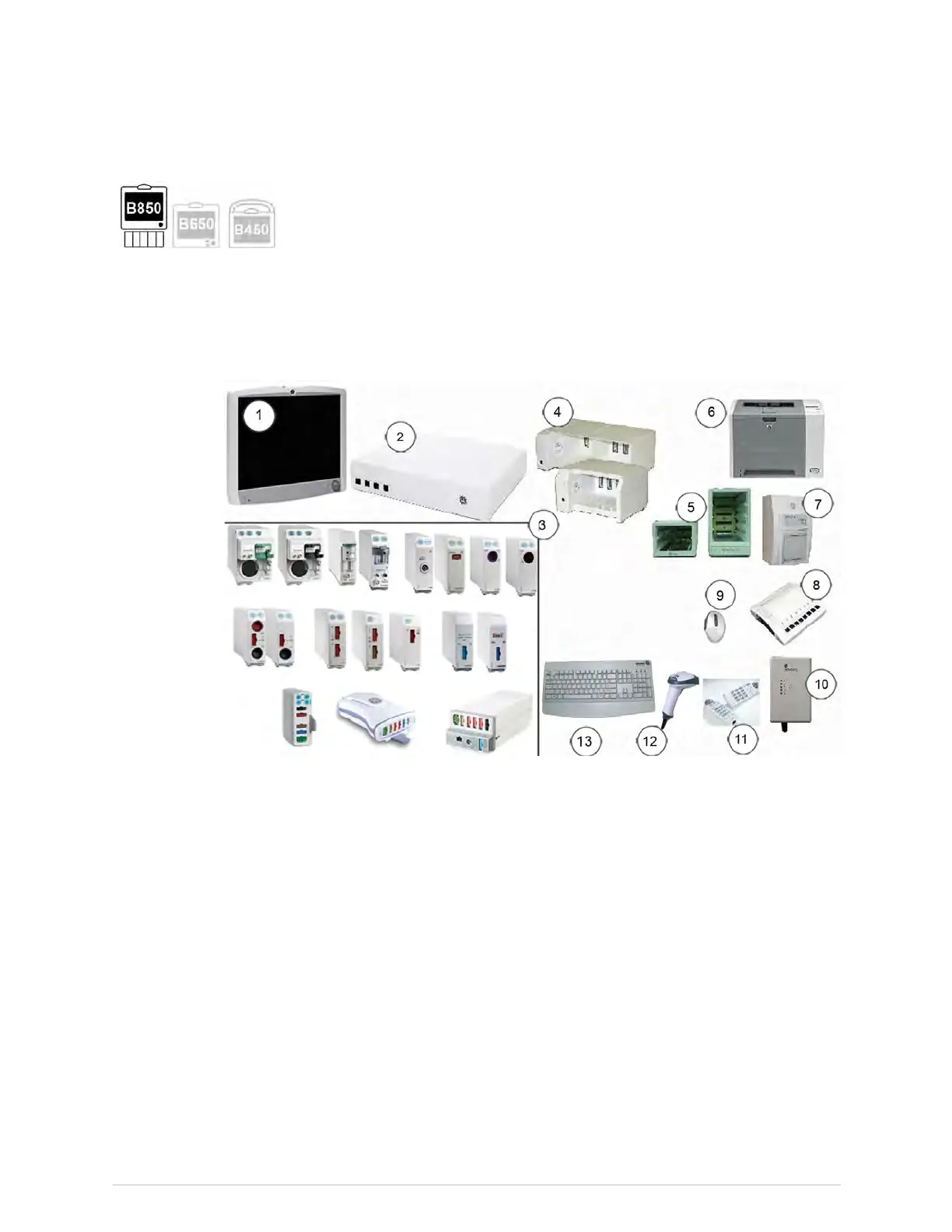

B850systemcomponents
B850only.
Allcomponentslistedbelowcanbeusedwithinthepatientenvironmentaslongas
anadditionaltransformerprovidingatleastbasicisolationisusedwithnon-medical
gradesecondarydisplaysandprinters.
Yoursystemmaynotincludeallthesecomponents.Consultyourlocalrepresentative
fortheavailablecomponents.
1.19-inchdisplay:TouchscreendisplaythatprovidesabbreviatedkeypadandTrim
Knobcontrol.Ifanon-medicalgradedisplayisusedasasecondarydisplay
withinthepatientenvironmentitmustalwaysbepoweredfromanadditional
transformerprovidingatleastbasicisolation.
2.Processingunit:Providesalinkbetweenparameteracquisitionandinputand
outputdevices.Theprocessingunitworkswithmultiparameteracquisition
devices.
3.Acquisitionmodules:Threetypesofacquisitionmodulescanbeused:PDM,
E-modules,andTRAMmoduleorsingleparameterTram-Racmodule.
4.TheF7Framehassevenmoduleslots,andtheF5Framehasvemoduleslots
thatsupportallE-moduleacquisitionmodules.ItsupportsbothPDMandPSM
moduleswithaslidemount.
5.ModuleTram-Racs:Tram-Rachousing(2and4A)acquirespatientdataforthe
monitor.Itprovidesaninterfacebetweenthemonitorandthemoduleorasingle
parameterTram-Racmodule.
6.Laserprinter:Thisdevicemaybeconnectedtothemonitor,network,orto
acentralstationonthenetwork.Thelaserprintercanprintwaveforms,
alarmwaveforms,numerictrends,andreports.Ifitisusedwithinthepatient
2062971-001CARESCAPEModularMonitors55
