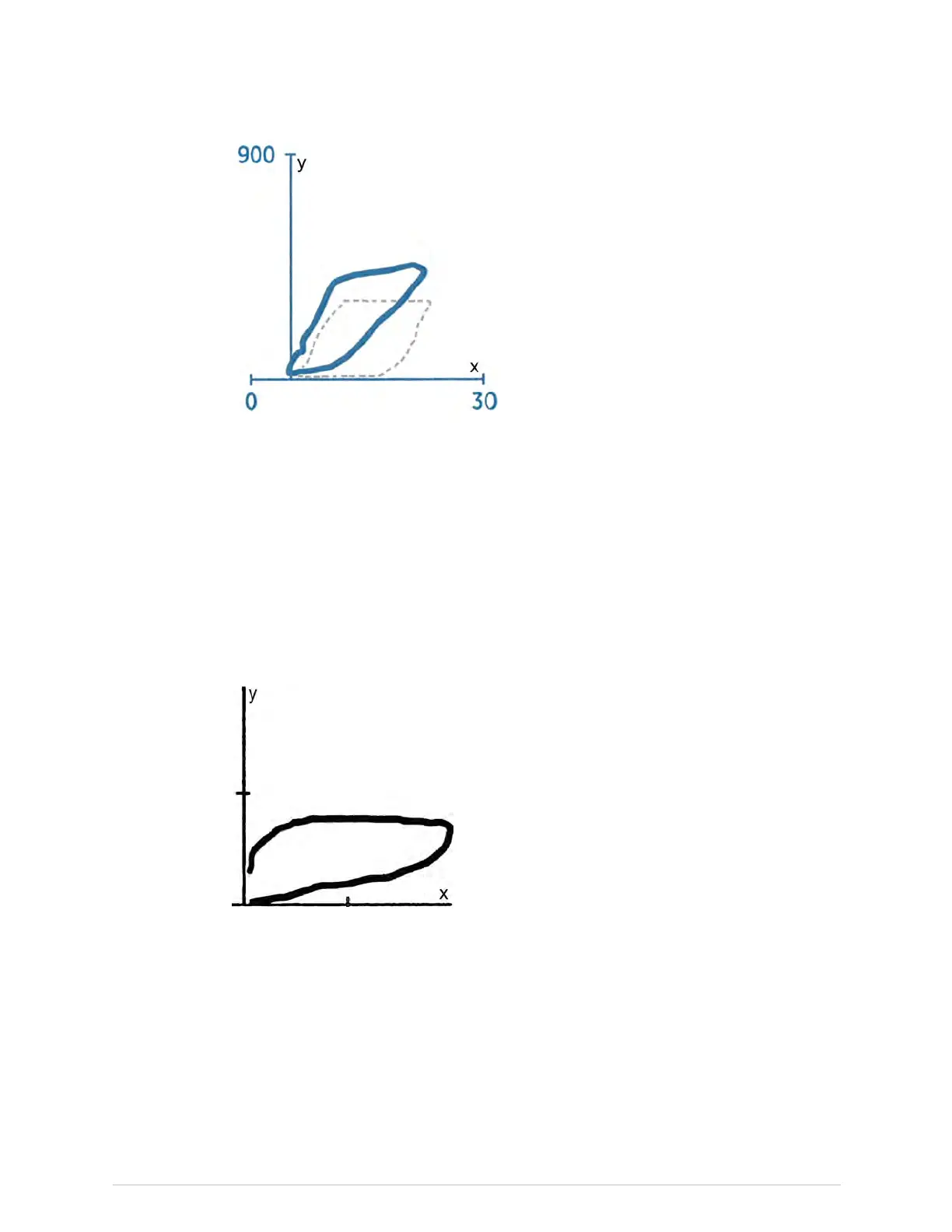

PatientSpirometry

●x=Paw

●y=Vol

TypicalpediatricPaw-Volloop

Inpediatricuse,thescalesforpressureandvolumearedifferentfromthoseofthe

adultuse.Pediatricpatientshaverelativelyhighairwaypressuresduetothevery

smallendotrachealtube.Usingaproportionallyhigherscaleforpressurethanfor

volumemakesitpossibletodrawpediatricloopswithashapethatissimilartothat

ofadultloops.

Typically:

●Highairwaypressure(smalldiameterofthetube)

●Lowcompliance

●Insp>Exp(leakaroundtube)-loopremainsopen

●x=Paw

●y=Vol

Flow-Volphases

Flow-Volloopillustratestherelationshipbetweenowandvolume.Inspiratoryow

showsthetypeofowpatternusedbytheventilator,andexpiratoryowindicates

theresistanceduringexpiration.Allow-restrictiveincidents(airwayobstruction,

intrinsicPEEP)arevisibleintheFlow-Volloop.

2062971-001CARESCAPEModularMonitors335
