SmartAXIS Touch User's Manual 24-5
1 Monitoring with WindO/I-NV3
24
Monitor Function

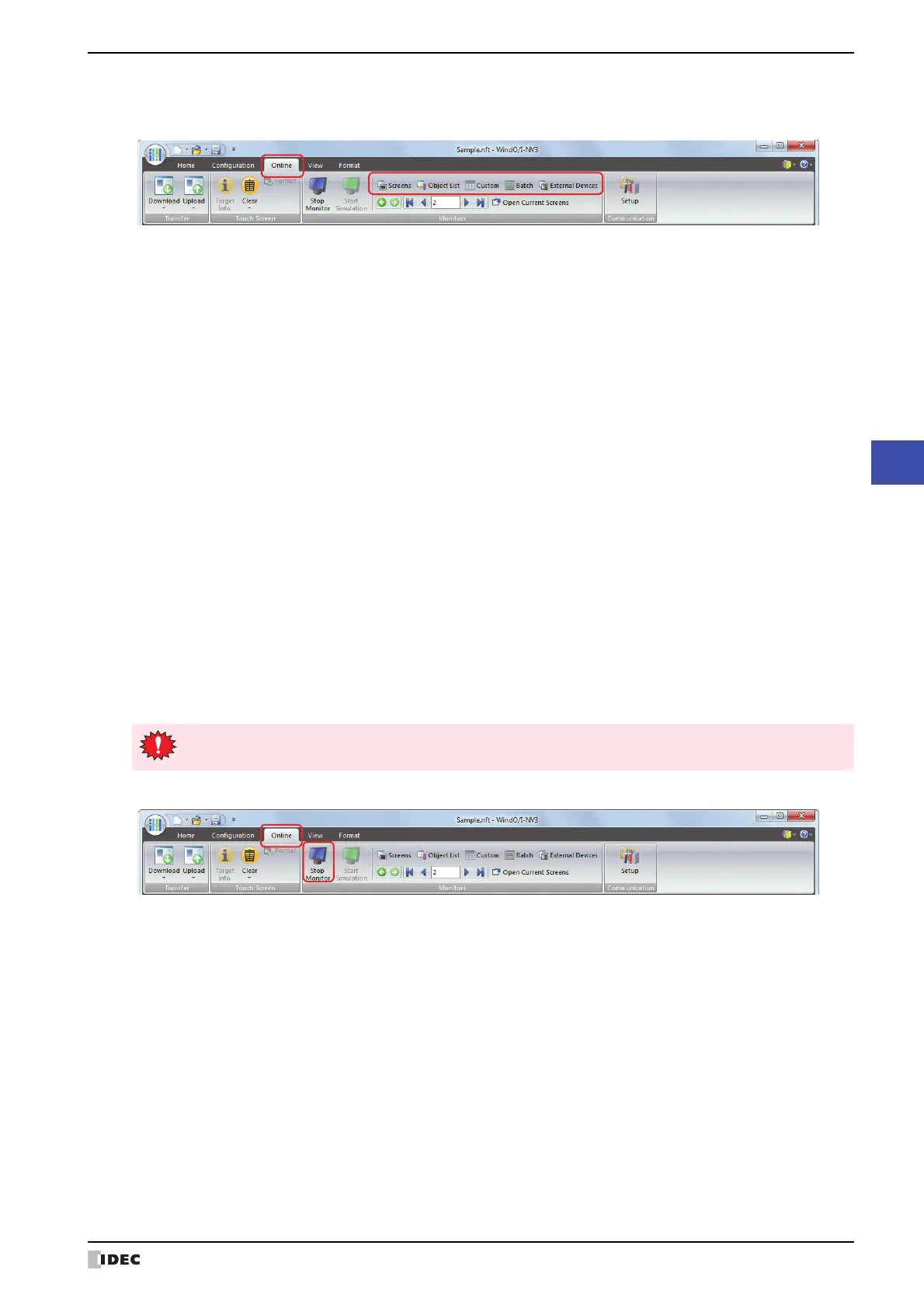

5 On the Online tab, in the Monitors group, select the monitor being used.
When monitoring starts, the screen monitor is displayed.
■ Screens
Automatically checks device addresses used on the screen displayed on the Touch. For details, refer to “Screen
Monitor” on page 24-6.
■ Object List
Displays values of devices in a popup on the Object List window. It also highlights objects while satisfying
conditions. For details, refer to “1.3 Display the Value of Device in Popup” on page 24-16, and “1.4 Highlighting
Objects While Satisfying Conditions” on page 24-16.
■ Custom
Registers monitored devices individually and displays the value of devices. For details, refer to “Custom Monitor” on
page 24-7.
■ Batch
Registers monitored devices as a batch for sequential addresses and displays the value of devices. For details, refer to
“Batch Monitor” on page 24-14.
■ External Devices
Displays the state of external devices connected to the Touch. For details, refer to “External Device Monitor” on page
24-15.
6 Check operation of project data by monitoring and changing values of devices, and edit project data if there is an
error.
If the monitored screen is switches, repeat steps
3 through 4.
7 Download the edited project data to the Touch.
8 On the Online tab, in the Monitors group, click Stop Monitor.
To reflect edits made during debugging, it is necessary to perform a download.
