SmartAXIS Touch User’s Manual 4-15
3 Base Screen
4
Screen

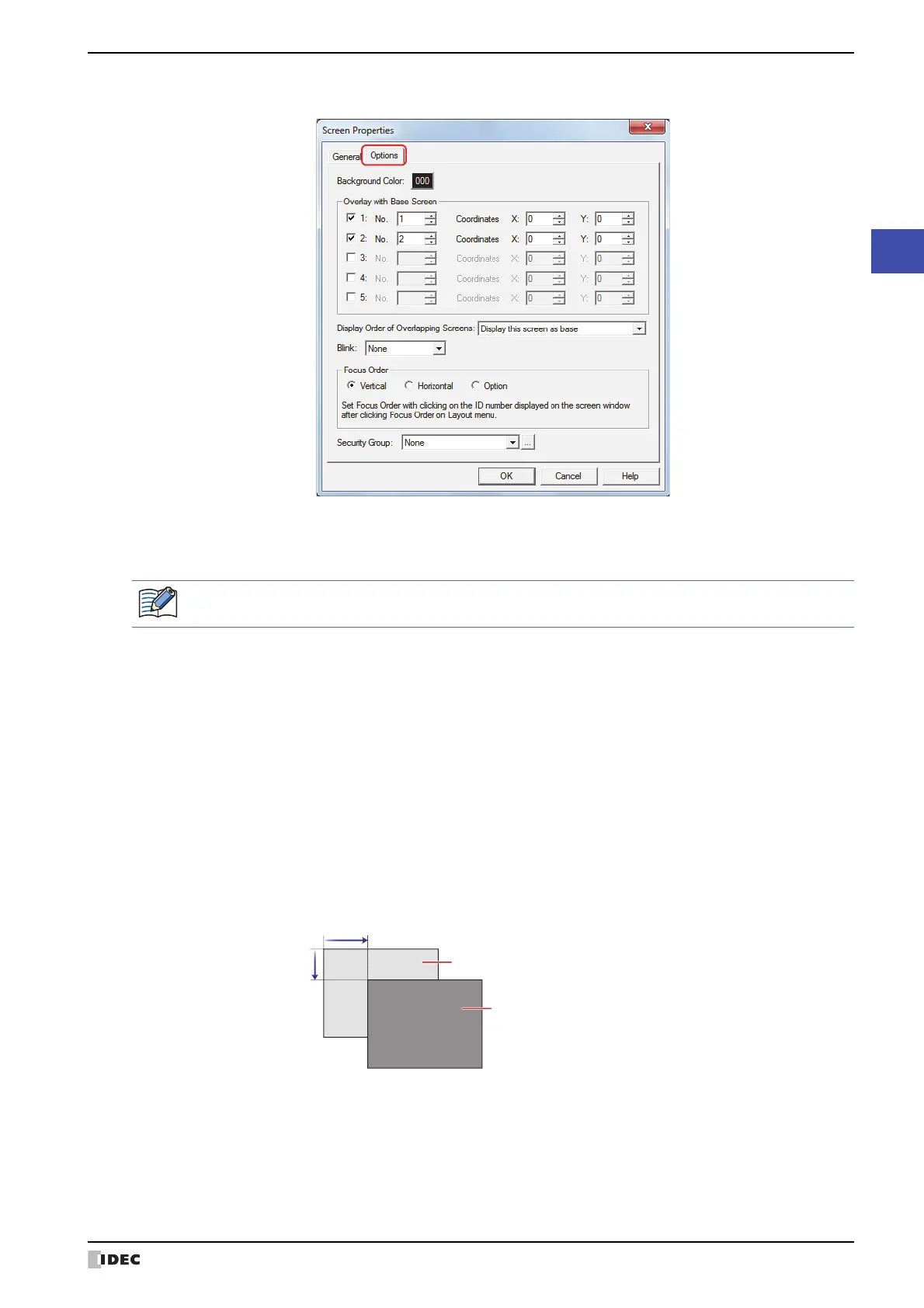

● Options Tab
■ Background Color
Select the screen’s background color (color: 256 colors, monochrome: 8 shades). Click this button to open the color
palette. Select color with the color palette.
■ Backlight color
*1
Select the backlight color for the screen from the following options.
“White”, “Red”, “Pink”
■ Overlay with Base Screen
Configure this section to display the Base Screen by overlaying screens.
*1 Monochrome LCD models only
When Overlay with Base Screen is configured, the background color for the Base Screen specified as the
background is displayed.
1 to 5: Select these to display the Base Screen by overlaying screens.
No.: Enter the overlay screen’s screen number (1 to 3000).
Coordinates X, Y: Specify the display location of the overlay screen in coordinates. The coordinates can be set in
the range (Screen size - 1 dot).
The origin is the upper-left corner of the screen and the X- and Y-coordinates correspond to the
upper-left corner of the overlay window.
(0, 0)
X
Y
Base Screen
Overlay screen
