IDEC SmartAXIS Touch FT1A Series User Manual

3 Base Screen
4-16 SmartAXIS Touch User’s Manual

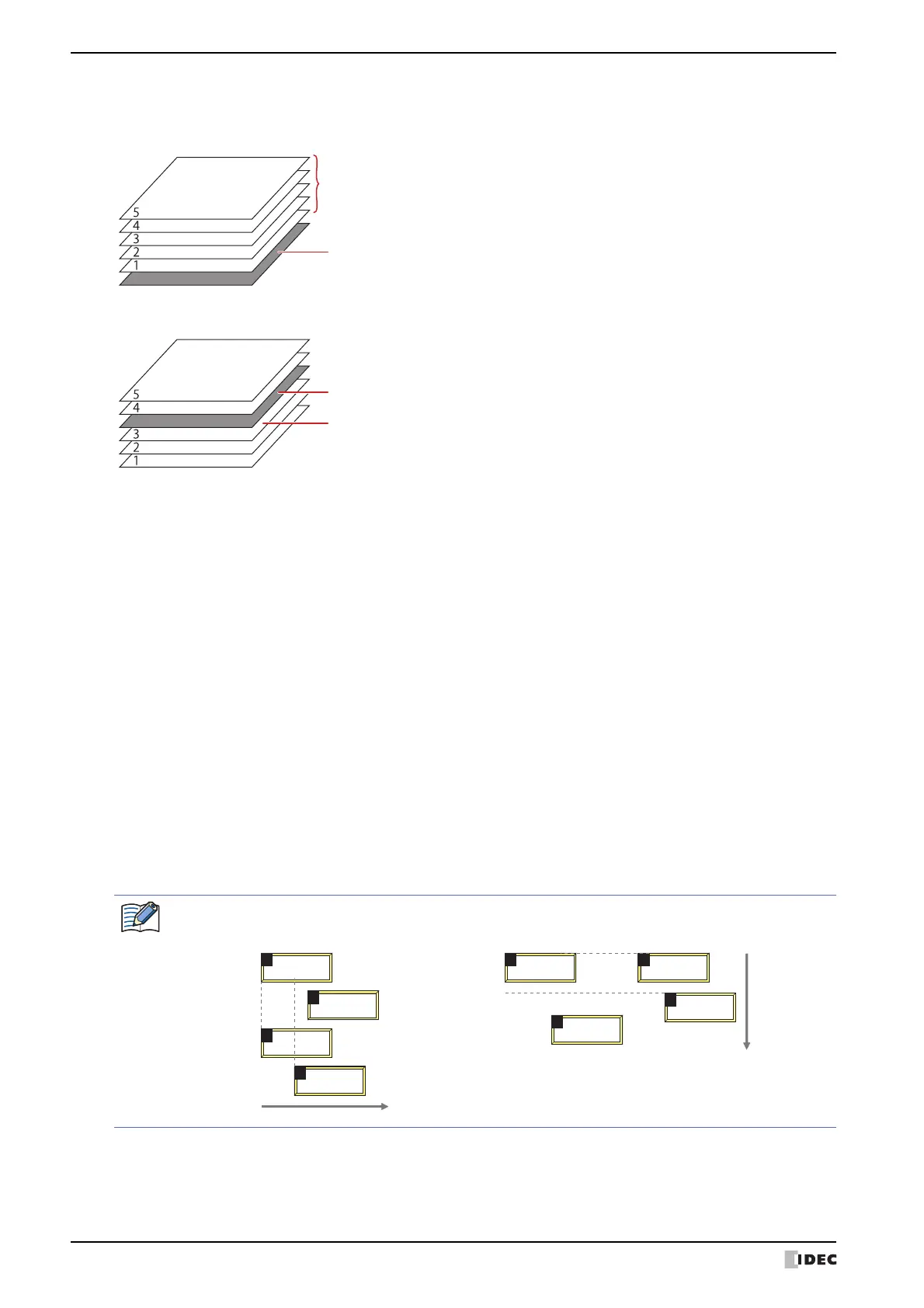

■ Display the Order of Overlapping Screens
You can select the display order of the Base Screen and the overlay screens.
Example:To display the Base Screen being edited as the background
Example: To display the Base Screen being edited above overlay screen: 3
■ Blink
Select one of the following items as the setting when the screen is blinking.
■ Focus Order
Sets the focus order for Numerical Input and Character Input. The focus order is the order the focus moves between
Numerical Input or Character Input when the user presses the ENT key. Text can be input in Numerical Input or
Character Input that has focus. The focus order number starts from 0.
Base Screen being edited
Overlay screen
(5 screens max)
Base Screen being edited
Overlay screen: 3
None: Displays the screen.
Blink (1 sec cycle): The screen display is blinked in one second intervals.
Blink (0.5 sec cycle): The screen display is blinked in half second intervals.
Backlight OFF: Turns off the backlight until the screen is touched or until System Area 1 (address+1, bit 0 or
bit 7) is set to 1.
Vertical: The focus moves vertically from top to bottom.
Horizontal: The focus moves horizontally from left to right.
Custom: Sets the desired order for moving the focus.
On the View tab, in the Screens group, click Focus Order, and then click the parts in the
order to move the focus.
The focus moves in the following order when Numerical Input and Character Input on the screen is not aligned
to the left or top.
1
4
3
2
1
4
3
2
1234
5
890
67
1234
5
890
67
V
ertical
X-axis left to right
Y-axis up to down
Horizontal
