● Saving graphic elements in Picture Manager
This section describes how to save drawing objects in Picture Manager. Saved graphic elements can be used for part
diagrams and drawings.
Saving image files

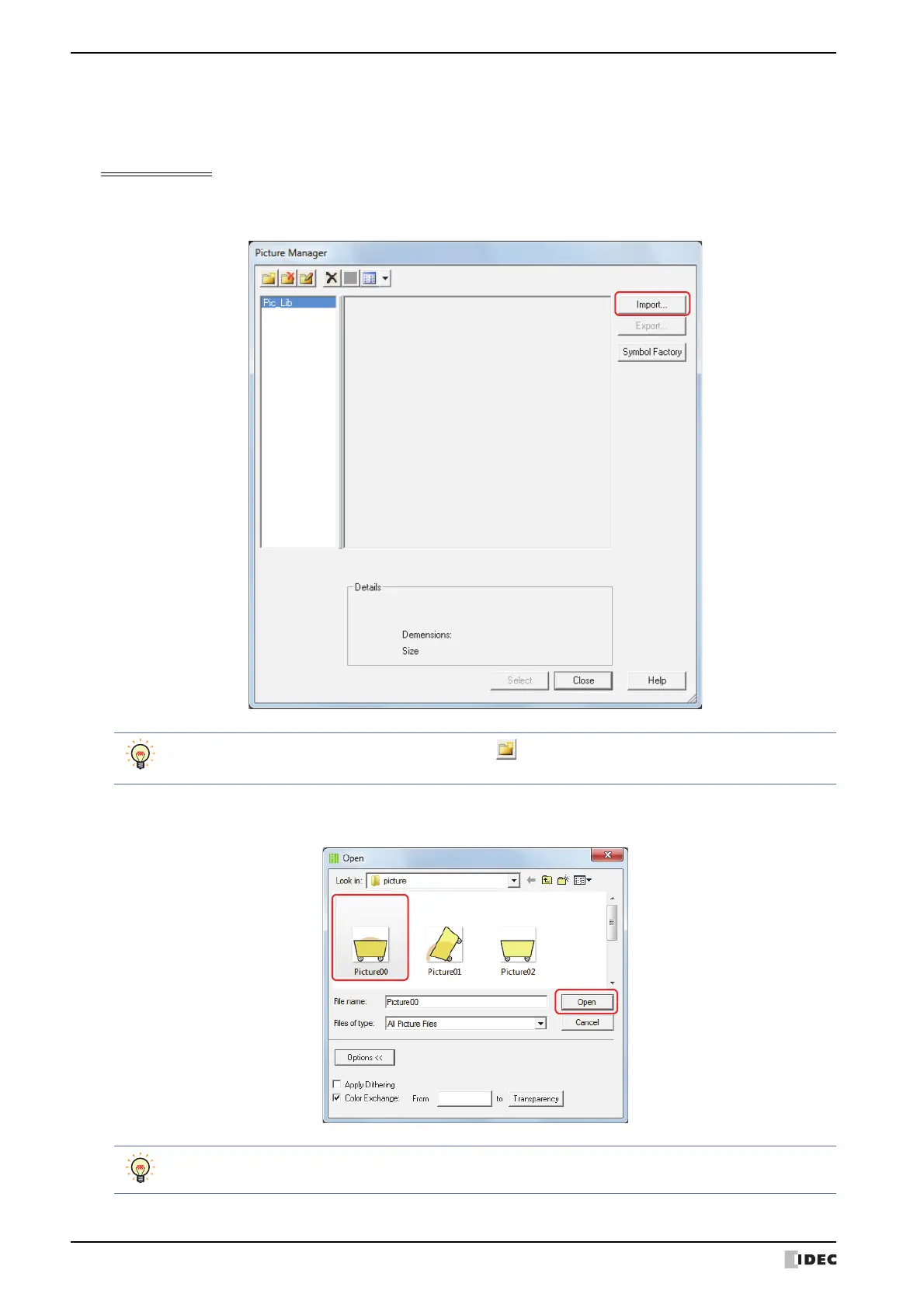

1 Click Import in Picture Manager.
The Open dialog box is displayed.
2 Specify the image file, and then click Open.
When managing graphic elements by category, click (Create New Category) to create a new category in
the Category list, and select it.
Detailed settings can be made using Options from the Open dialog box. Click Options to toggle between
showing and hiding the items. For details, refer to “Open Dialog Box Options” on page 2-29.
