1 Bar Chart
10
Charts

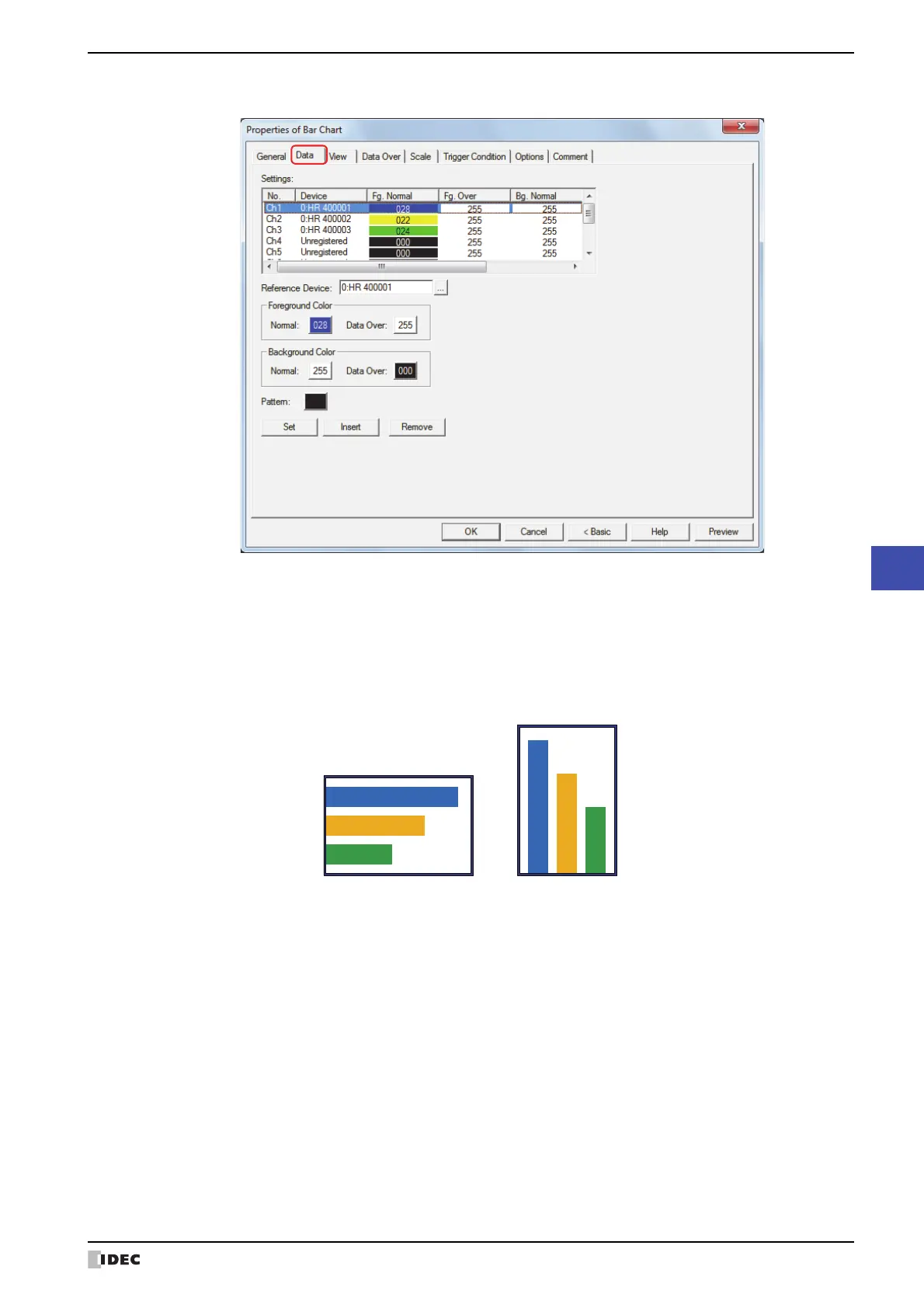

● Data Tab
■ Settings
Lists the chart settings. The list shows the numbers, reference devices, and colors for the chart.
*1 Advanced mode only
No.: Shows the numbers for the chart (Ch1 to Ch10).
For Horizontal Bar and Horizontal Peak, the numbers are listed in order from top. For
Vertical Bar and Vertical Peak, the numbers are listed in order from the left.
Device: Shows the source word device for the data to display in the chart.
Fg. Normal: Shows the foreground color of the chart when normal.
Fg. Over
*1
:
Shows the foreground color of the chart when data over.
Bg. Normal: Shows the background color of the chart when normal.
Bg. Over
*1
:
Shows the background color of the chart when data over.
Pattern: Shows the chart pattern.
Horizontal Bar
Vertical Bar
Ch1
Ch1 Ch2 Ch3
Ch2
Ch3
