IDEC SmartAXIS Touch FT1A Series User Manual

2 Line Chart
10-24 SmartAXIS Touch User’s Manual

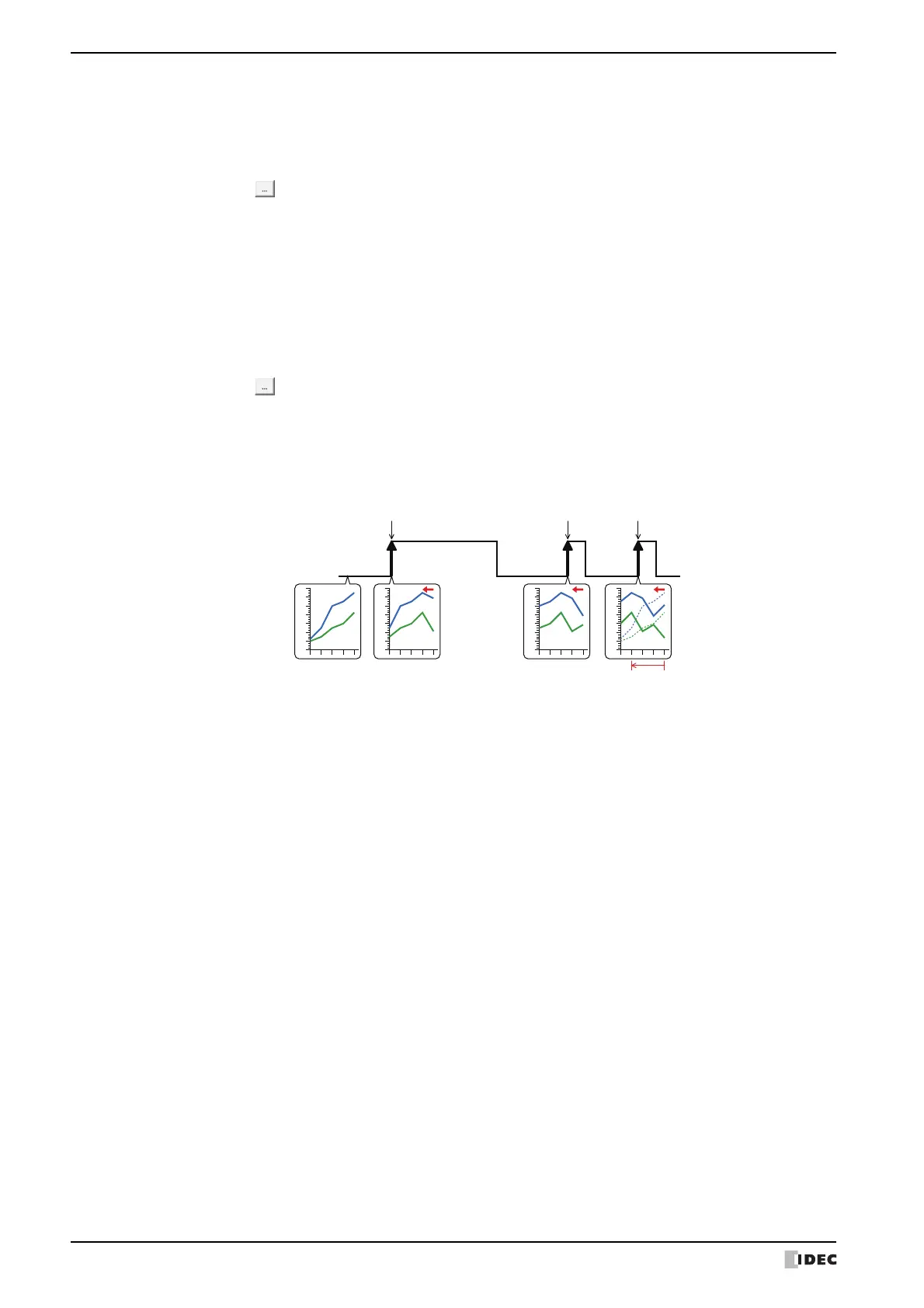

■ Scroll
*1
*1 Advanced mode only
Enable Scroll: To scroll the chart to display past data and to display the cursor, the chart display updating must be
stopped. To control updating the display, select this check box and specify the bit device or bit of
the word device to control the display.
Click to display the Device Address Settings dialog box. For the device address configuration
procedure, refer to Chapter 2 “5.1 Device Address Settings” on page 2-62.
Display updating stops when the value of device changes from 0 to 1. Display updating restarts
when the value of device changes from 1 to 0.
This option can only be configured when Log Trend (Normal) or Log Trend (Pen Recorder) is
selected for Chart Type.
Right Scroll Device, Left Scroll Device:
The chart can be scrolled to the right or to the left when display updating is stopped. This option
specifies the bit device or bit of the word device to scroll the chart left or right.
Click to display the Device Address Settings dialog box. For the device address configuration
procedure, refer to Chapter 2 “5.1 Device Address Settings” on page 2-62.
The chart scrolls right or left one point of data each time the value of device changes from 0 to 1.
These options can only be configured when the Control Display Update and Scrolling check box
is selected.
1
0
0
20
40
60
80
100
-20
120
0
20
40
60
80
100
-20
120
0
20
40
60
80
100
-20
120
0
20
40
60
80
100
-20
120
Scroll right
1 data point.
Stop updating
Scroll right
1 data point.
Scroll right
1 data point.
Stop updating,
then scroll right
3 data points.
Value of
Right Scroll Device LM0
