2 Ladder Program
12-6 SmartAXIS Touch User's Manual
Inserting a NO contact of input I0

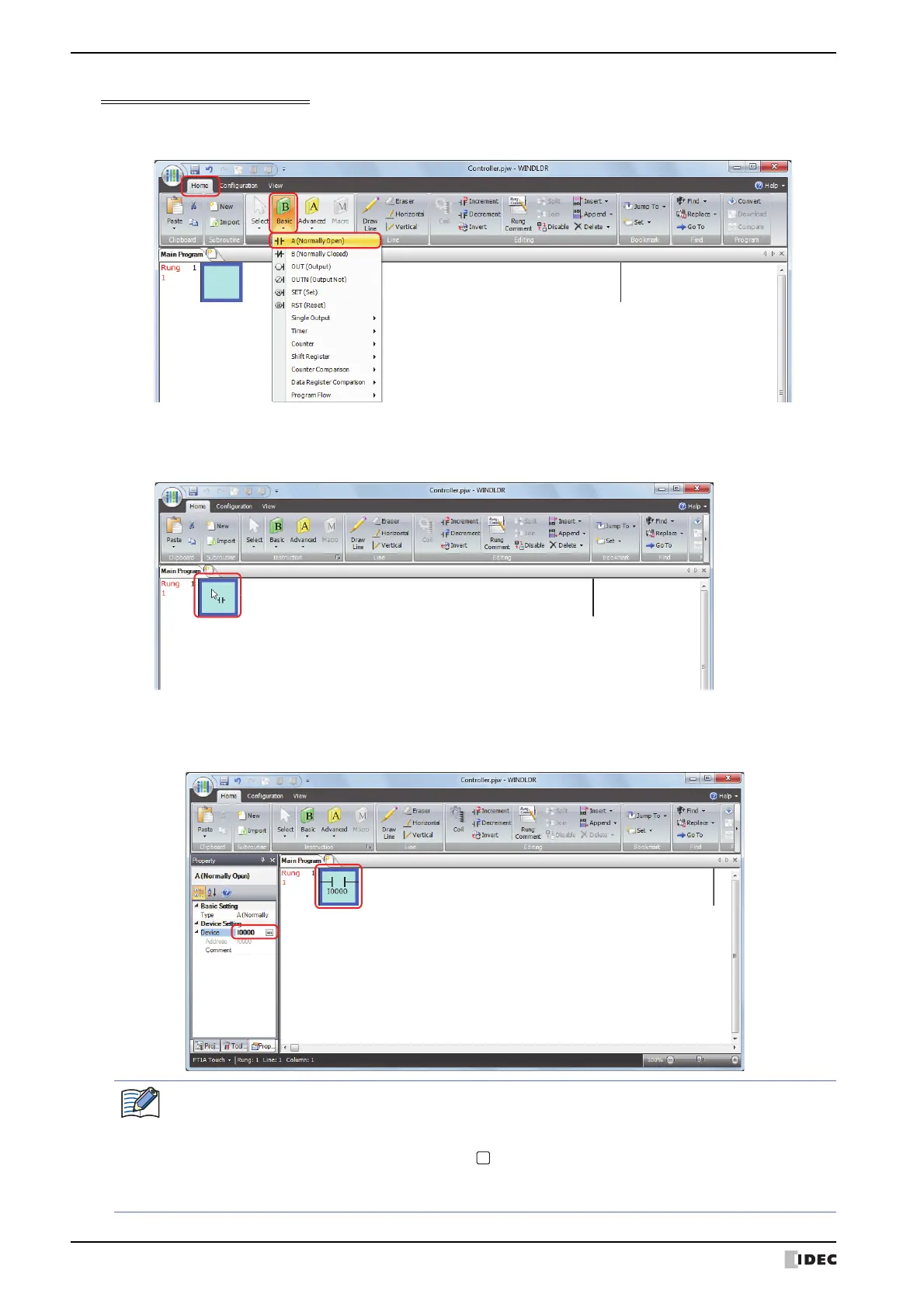

1 On the WindLDR Home tab, in the Instruction group, click Basic, and then click A (Normally Open).
The symbol for NO contact is displayed at the mouse pointer.
2 Move the mouse pointer to the first column of the first line where you want to insert a NO contact, and then click the
left mouse button.
The NO contact is created on the ladder line and the properties are displayed in the Property window.
3 Set the device in the Property window.
Enter "I0" for Device and press ENTER.
A NO contact of input I0 is programmed in the first column of the first ladder line.
Instructions can be entered using the right-click menu or the keyboard.
If entering an instruction using the right-click menu, open the menu, click Basic Command (B), and then
click A (Normally Open).
If entering NO contact from the keyboard, press and then select NO contact from the Coil Selection
dialog box and press ENTER.
For details, refer to the online help for WindLDR.
