SmartAXIS Touch User's Manual 12-35
3 FBD Program
12
Control Function

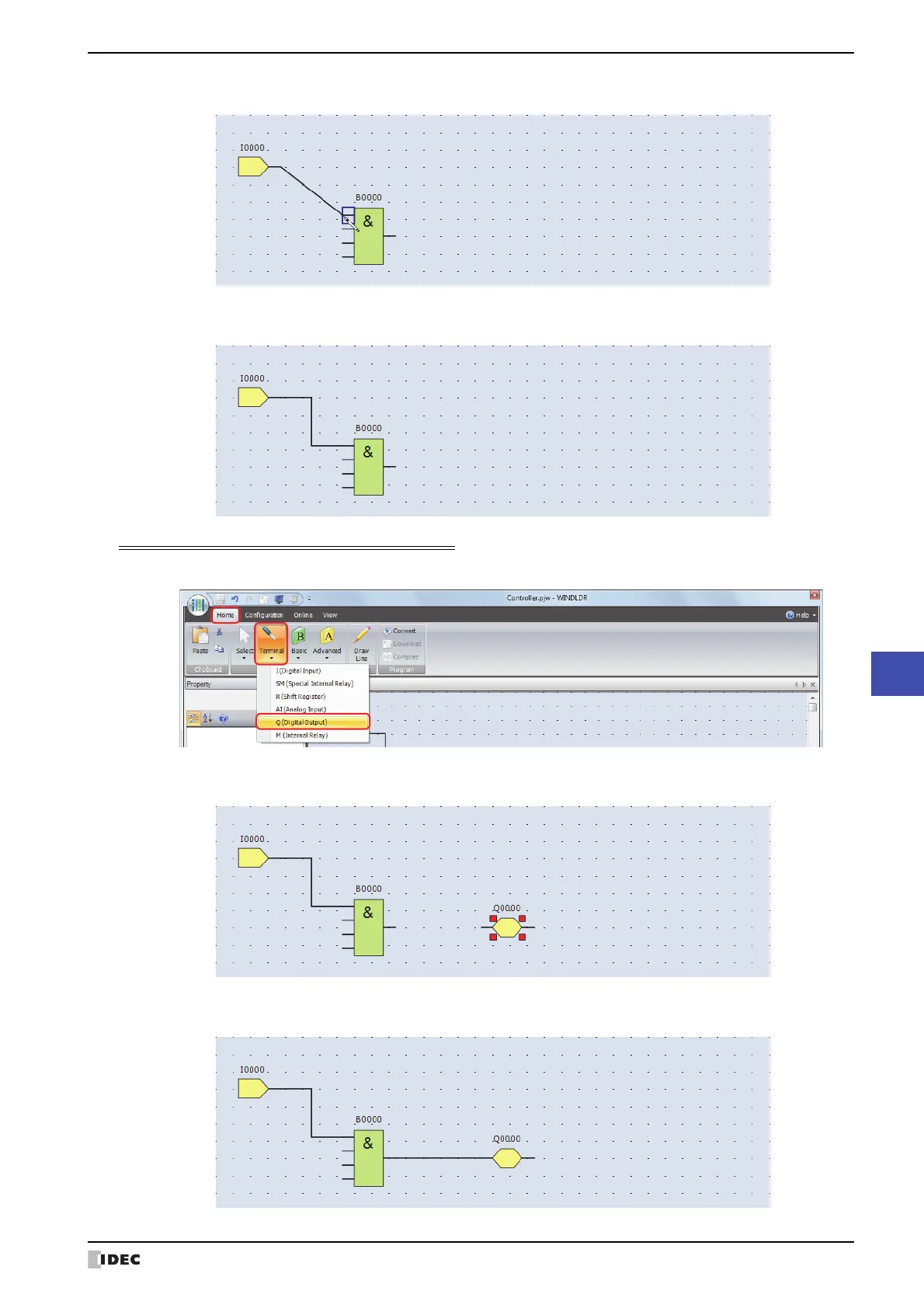

3 Click the mouse button and drag the line to the AND B0 input 1 connector.
4 Release the mouse button.
The input I0 output connector and the AND B0 input 1 connector are connected.
Insert output Q0 and connect it to the AND B0 output
1 On the WindLDR Home tab, in the Function Block group, click Terminal, and then click Q (Digital Output).
2 Move the mouse pointer to the FBD editor, and then click the mouse button.
Output Q0 is inserted at the position of the mouse pointer.
3 Connect the AND B0 output connector and the output Q0 input connector with a connection line.
Connect them in the same manner as “Connect input I0 and AND B0 with a connection line” on page 12-34.
To Next Page
